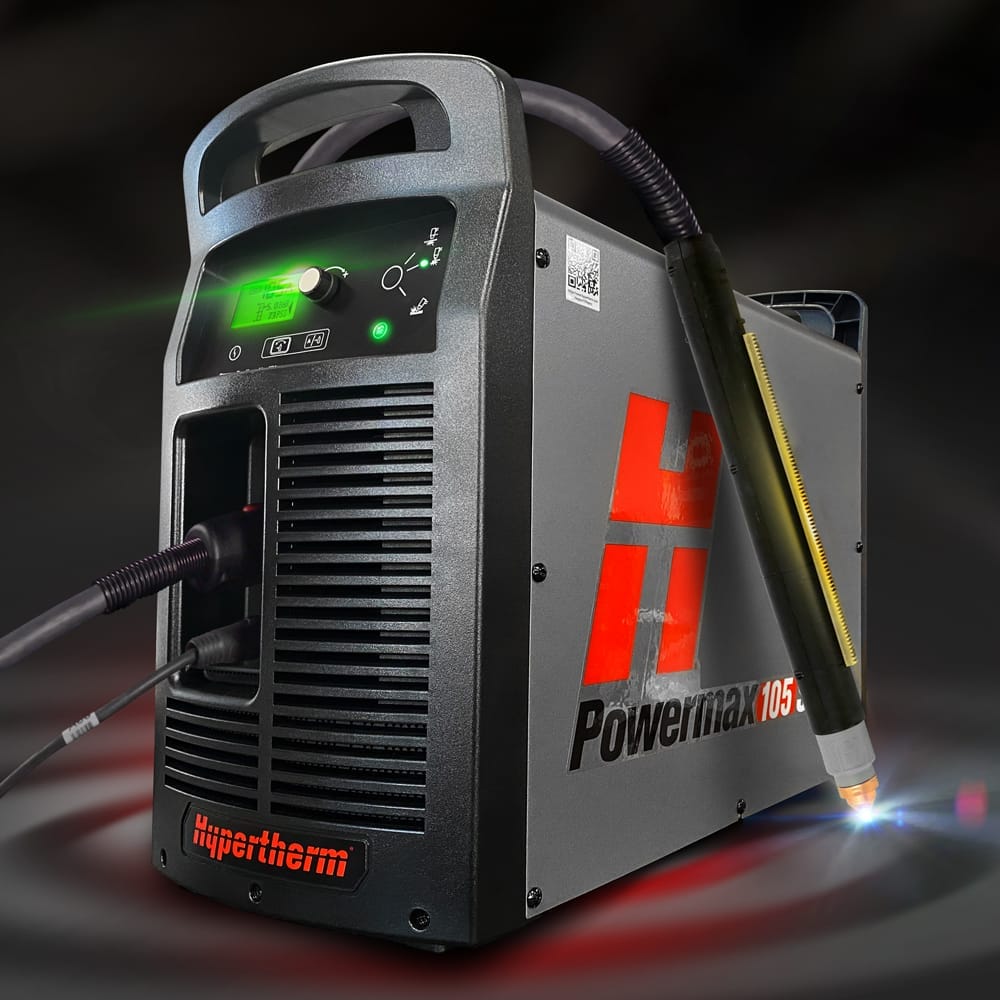

Hypertherm® Powermax105 SYNC™ Plasma System
Easy to use
Simplify consumable inventory
& eliminate setup errors.
Productivity gains
Minimizes downtime &
troubleshooting.
Innovative smart system
End-of-life detection with
Advanced torch communication.

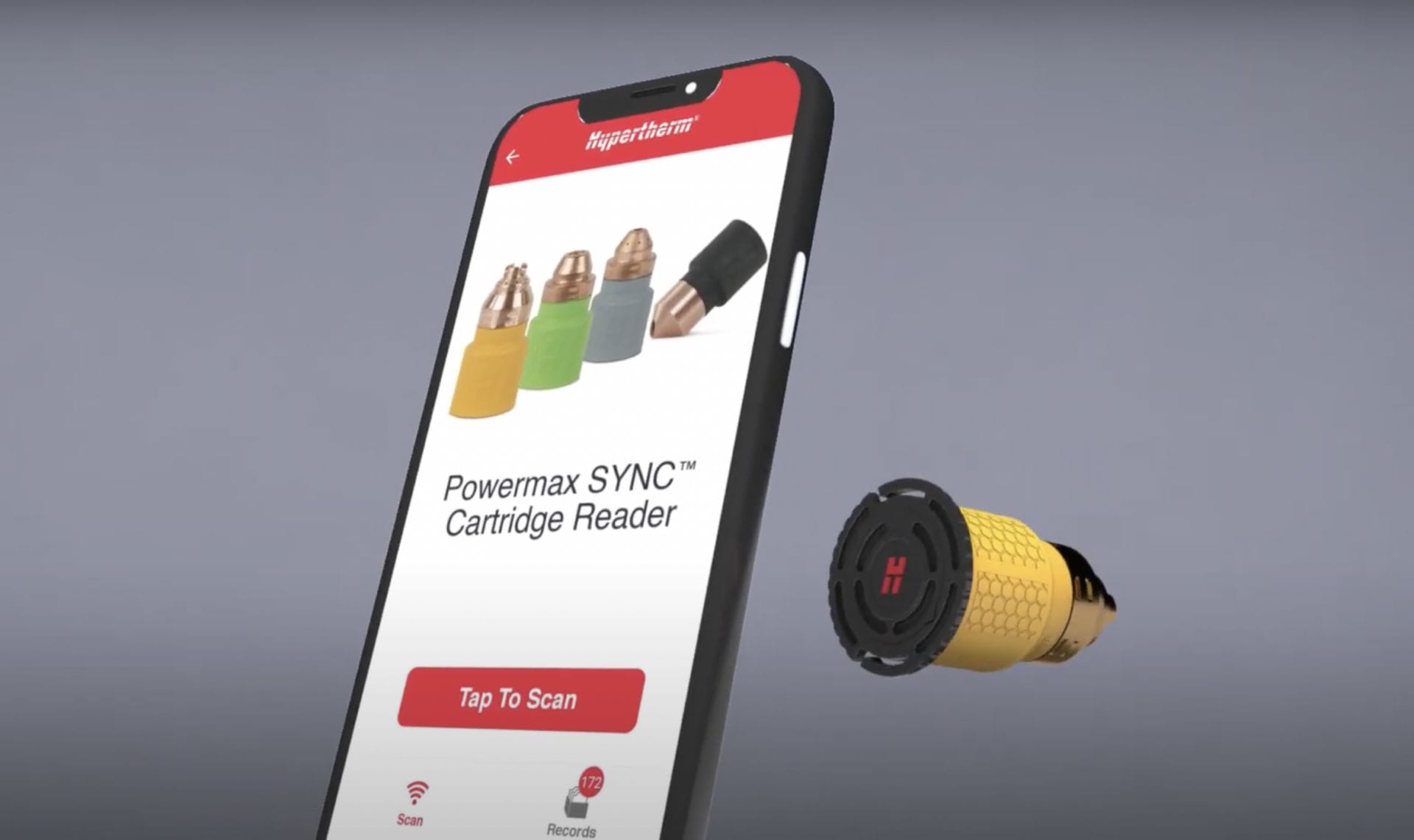

Cartridge performance data
App-Ready dedicated data retrieval
for tracking & to analyze usage.
Watch Helpful Powermax105 SYNC™ Videos
Why choose the Powermax105 SYNC™ Plasma System?

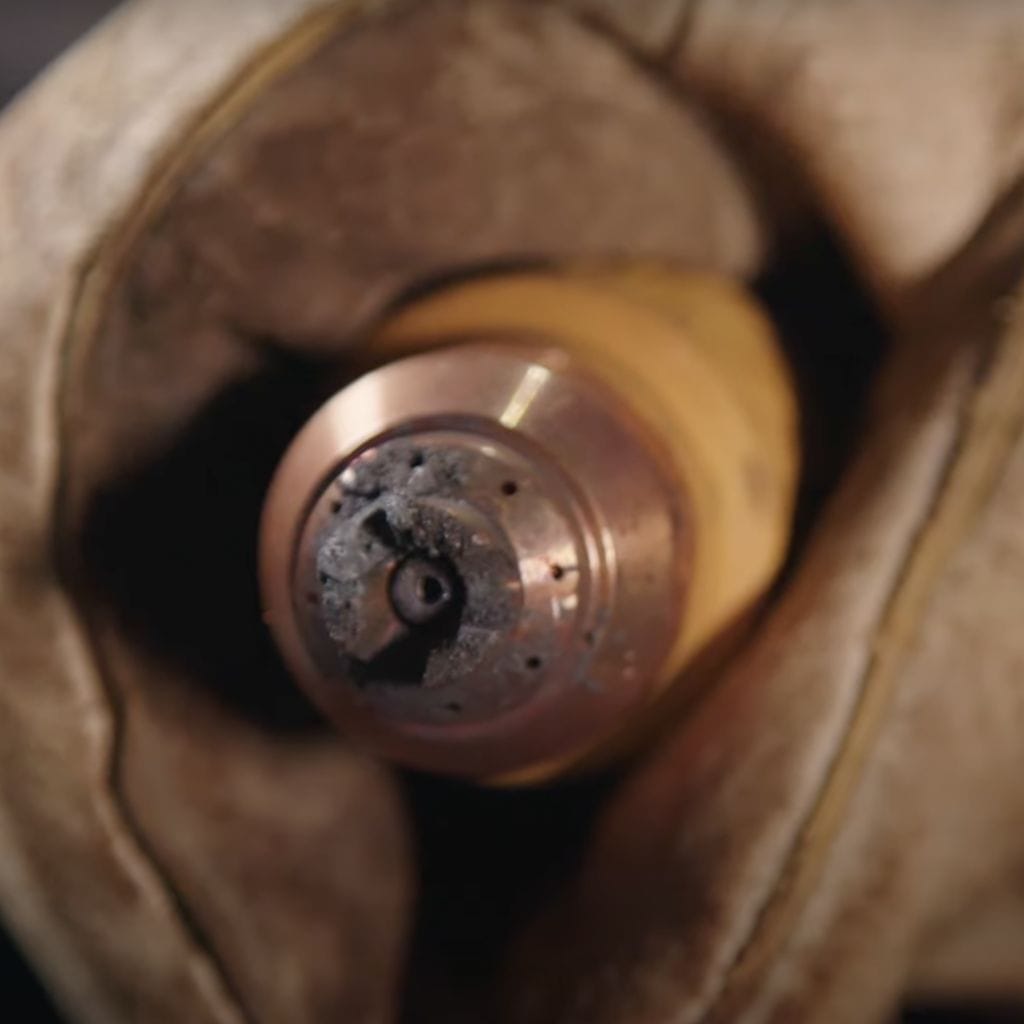

Instead of five consumable parts, Powermax SYNC™ systems with their included SmartSYNC™ torch, need only one! Your SmartSYNC™ torch will automatically adjust the amperage and choose the right cutting or gouging mode. Your torch will also tell you when the cartridge consumable is worn out and needs to be replaced. You no longer need to check by unscrewing the stack-up and looking at the electrode. Read the following articles for more information.
What does the Powermax105 SYNC™ include?

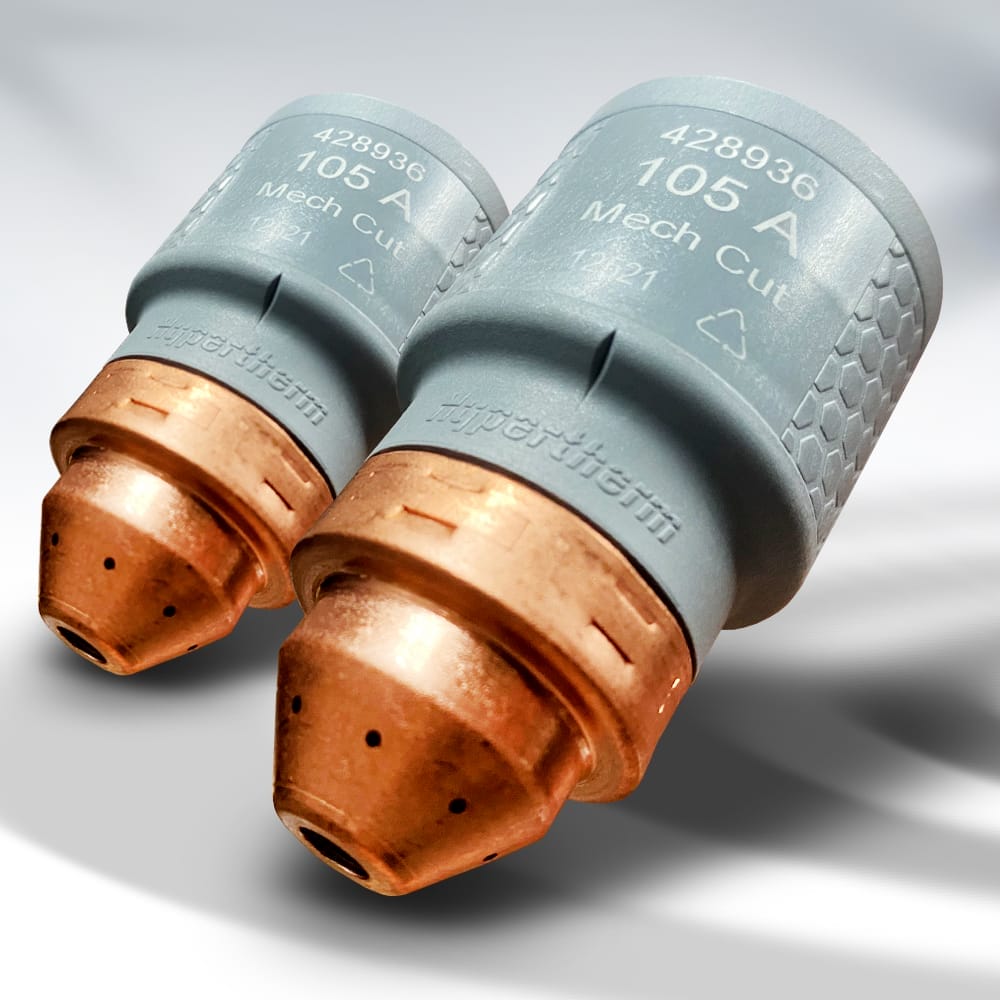

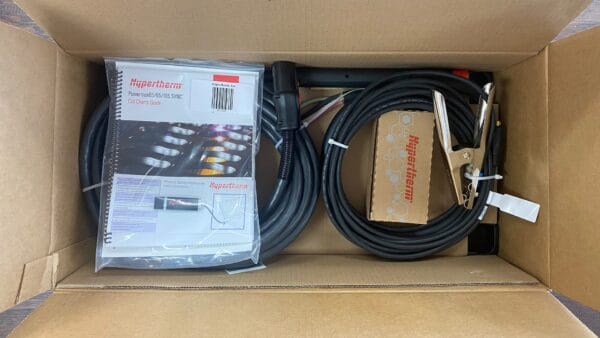

The Hypertherm® Powermax105 SYNC system includes the 25' foot RFID-enabled SmartSYNC™ mechanized torch, a 25' foot work lead, STV®CNC CPC Interface Cable ($200 value), one Mechanized Cutting Cartridge (85A Part No. 428934), two Mechanized Cutting Cartridges (105A Part No. 428936), three Ohmic Rings (Part No. 428895), Cut Chart Manual, Instructional USB, 3 year warranty for the unit & 1 year for the torch. The Cartridge Reader is sold separately ( available in our Hypertherm® Consumable Hub ).
SmartSYNC™ Plasma System

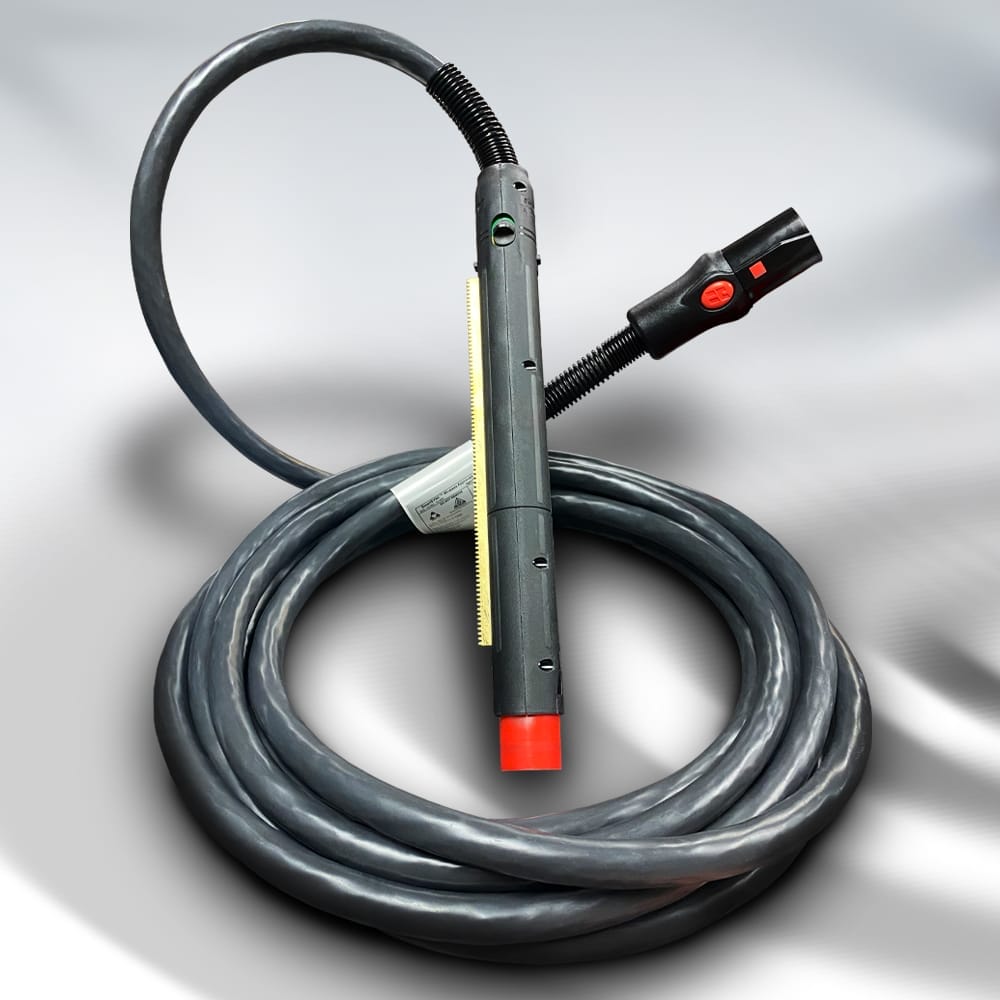

SmartSYNC™ Machine Torch

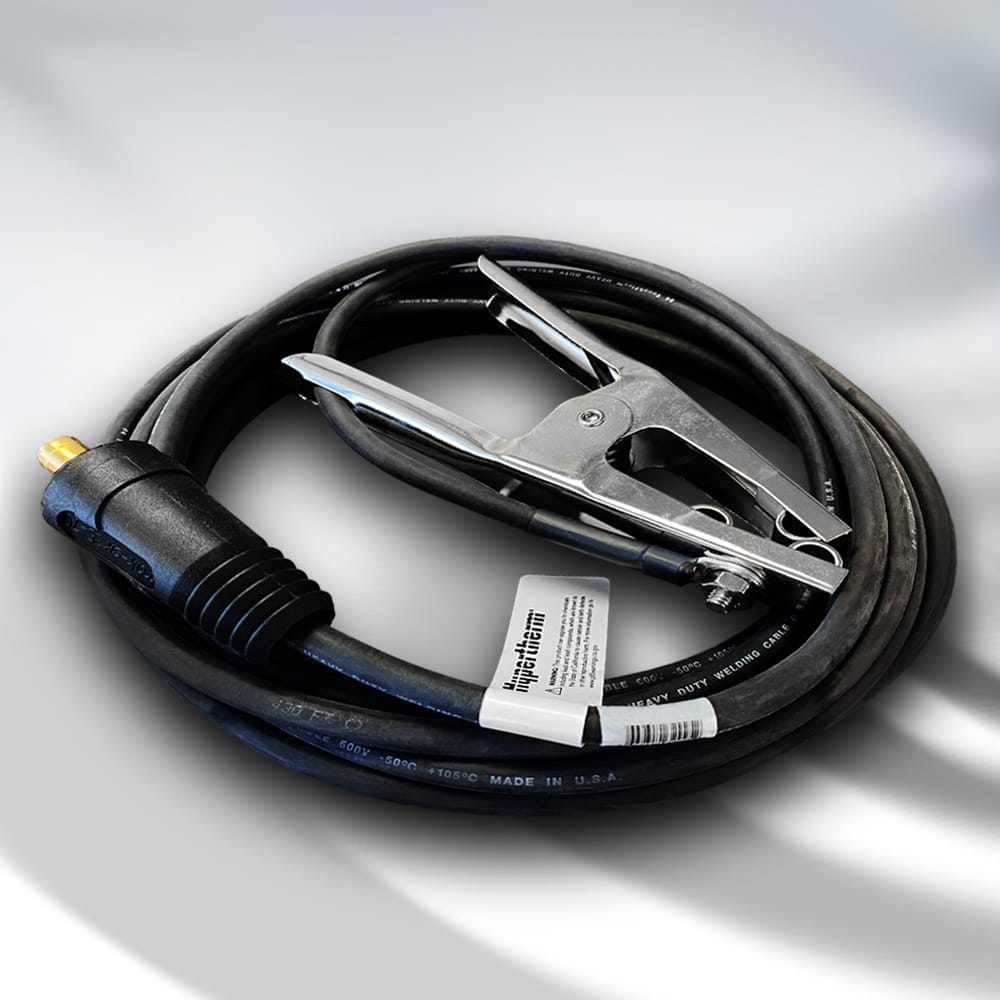

25′ ft. Work Lead
8′ ft. CPC Cable

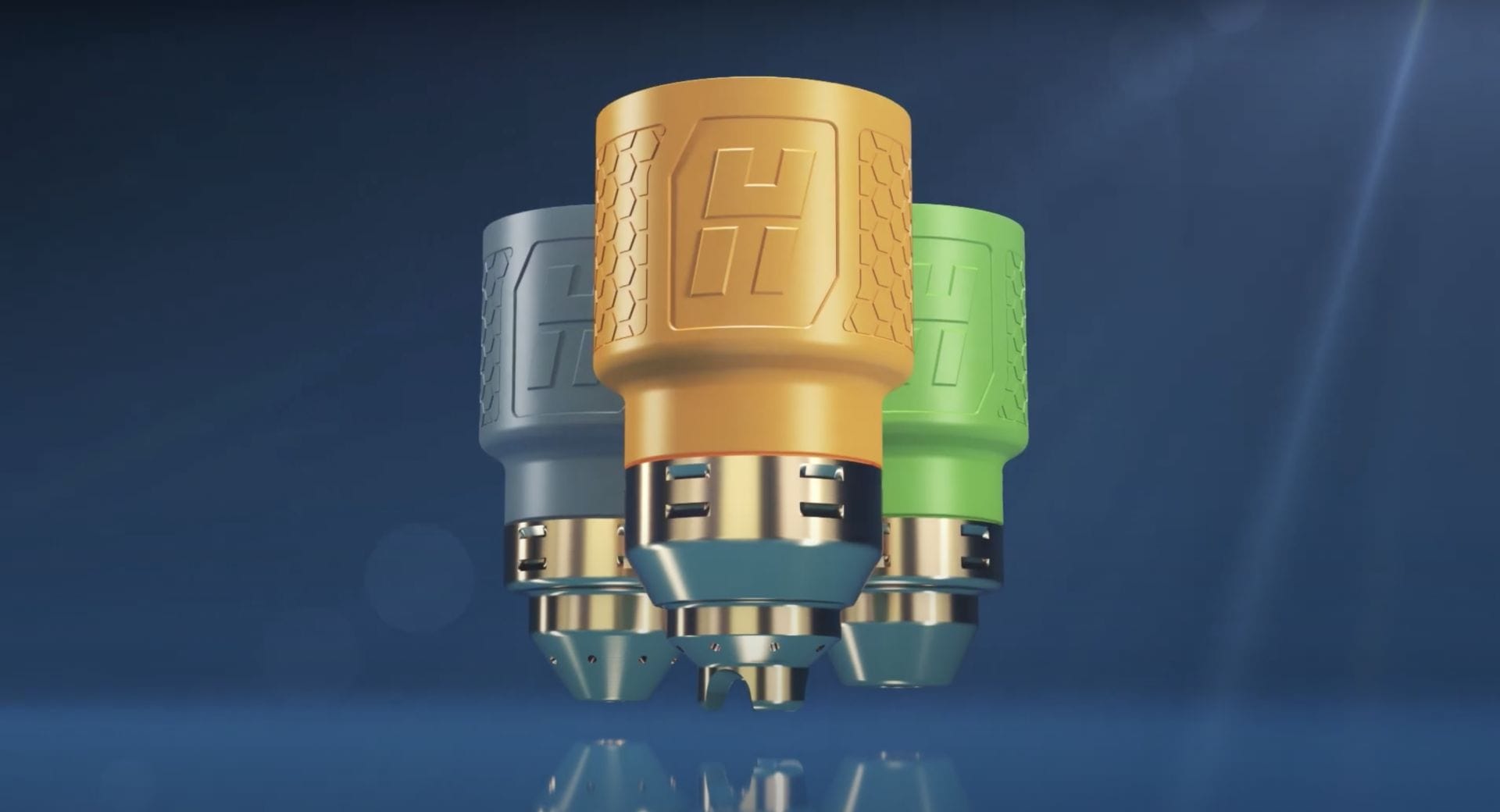

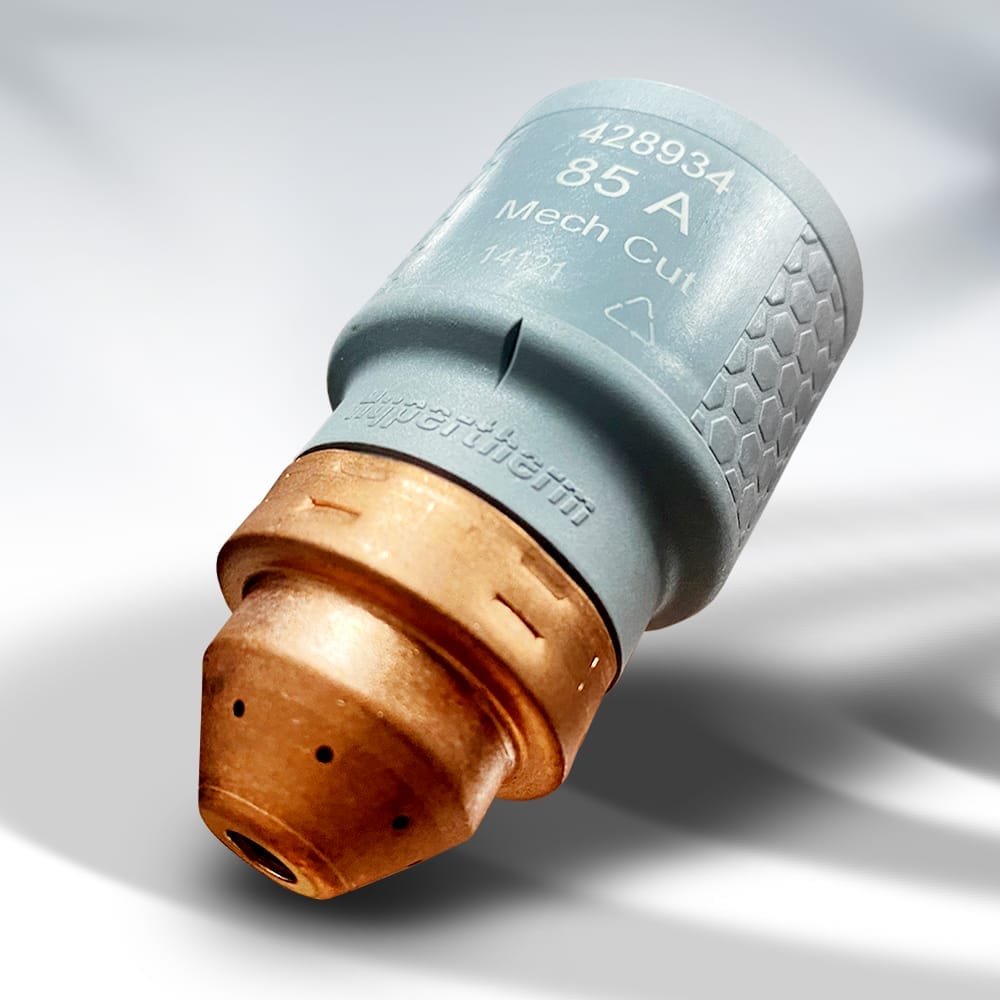

SmartSYNC™ Cartridges

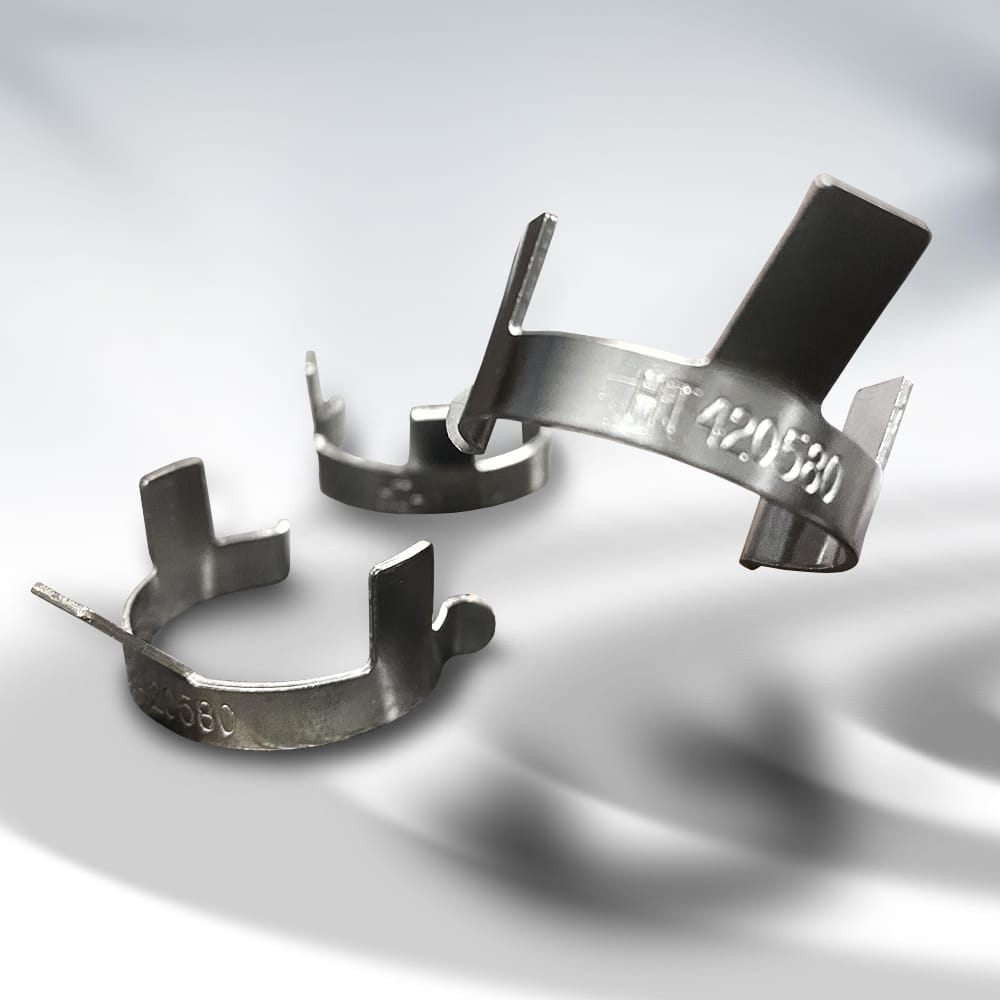

3 Ohmic Rings

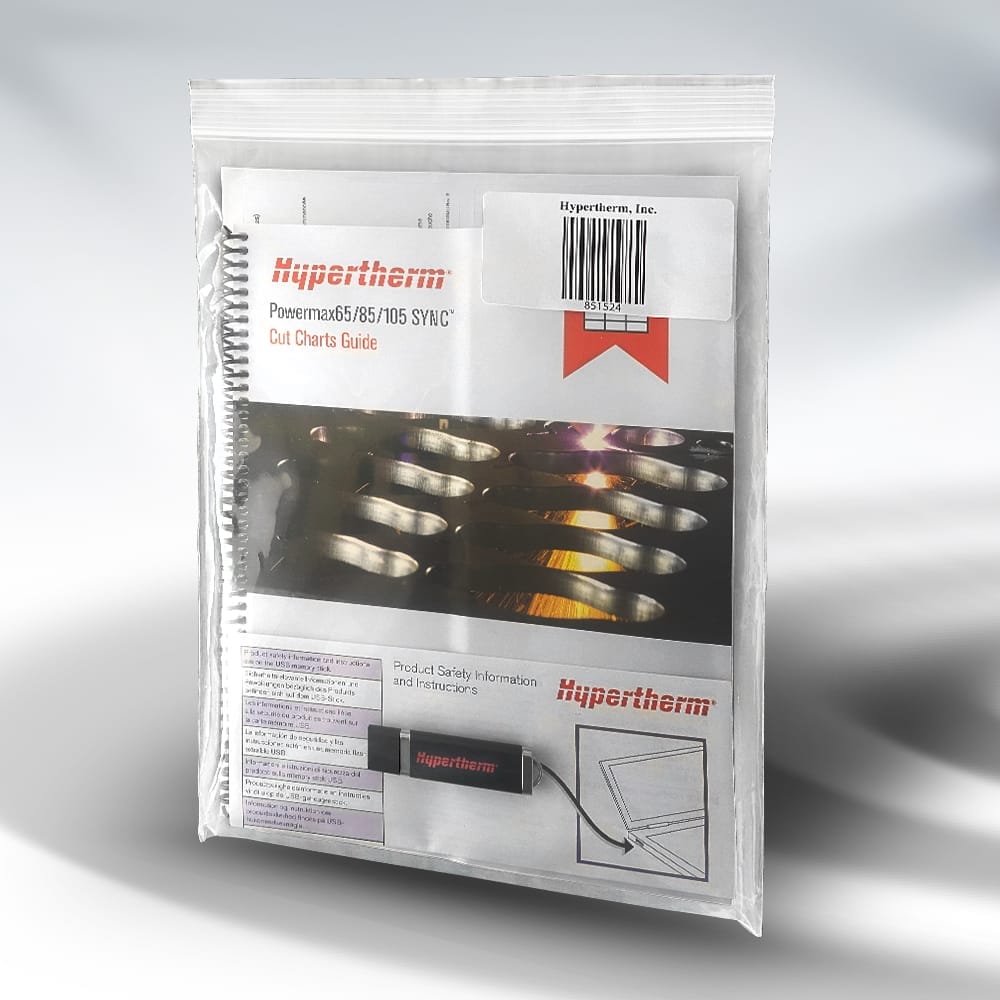

Cut Chart Manual & USB

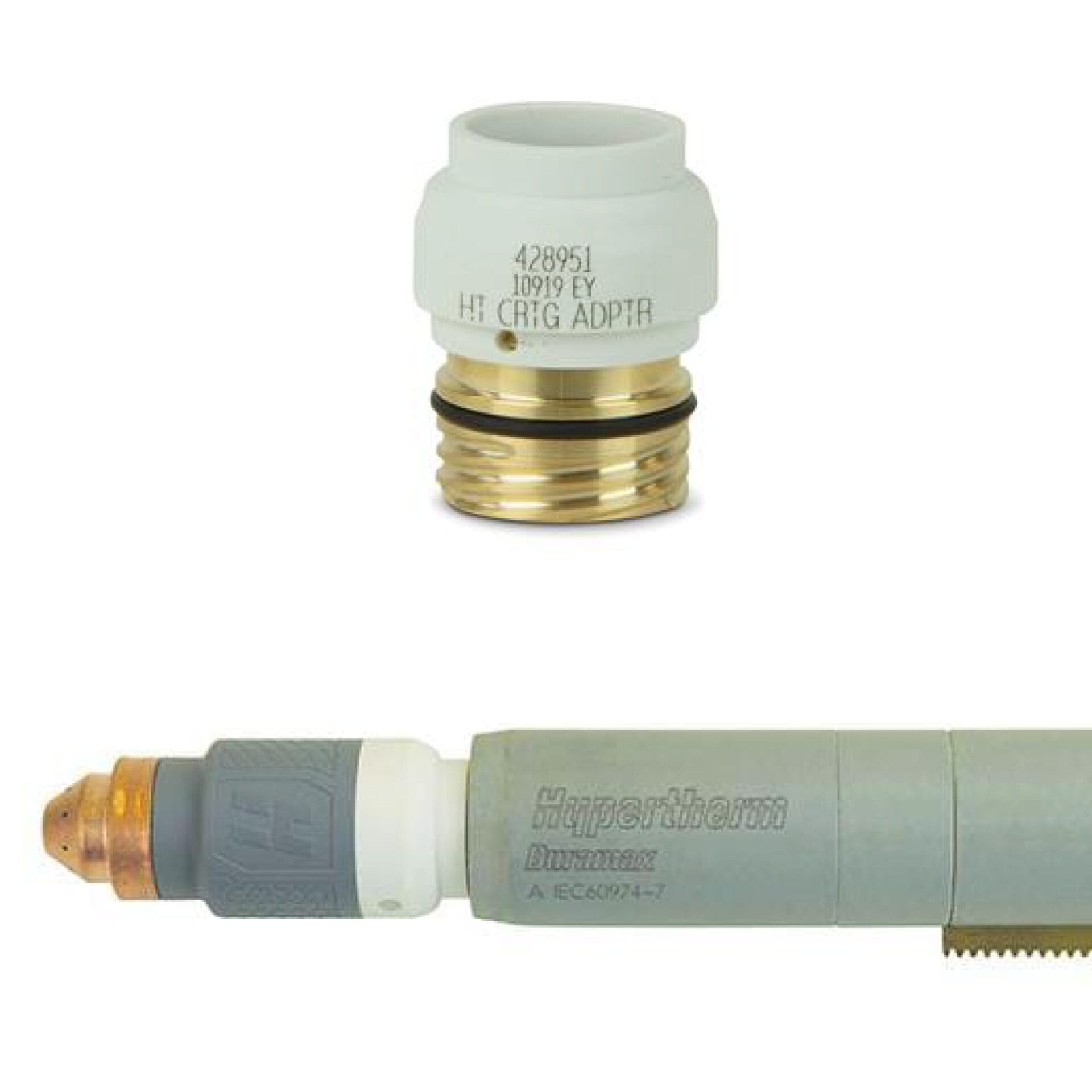

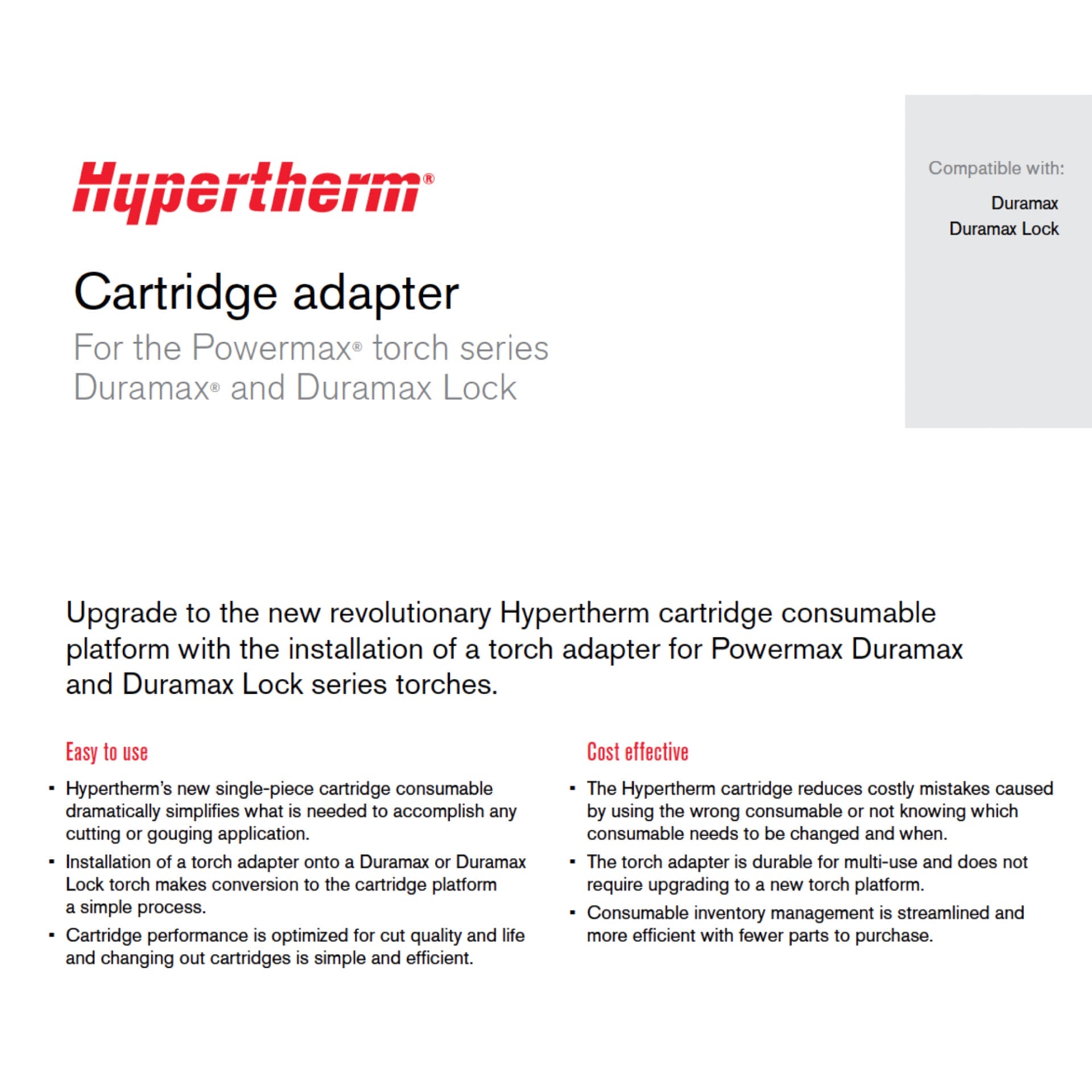

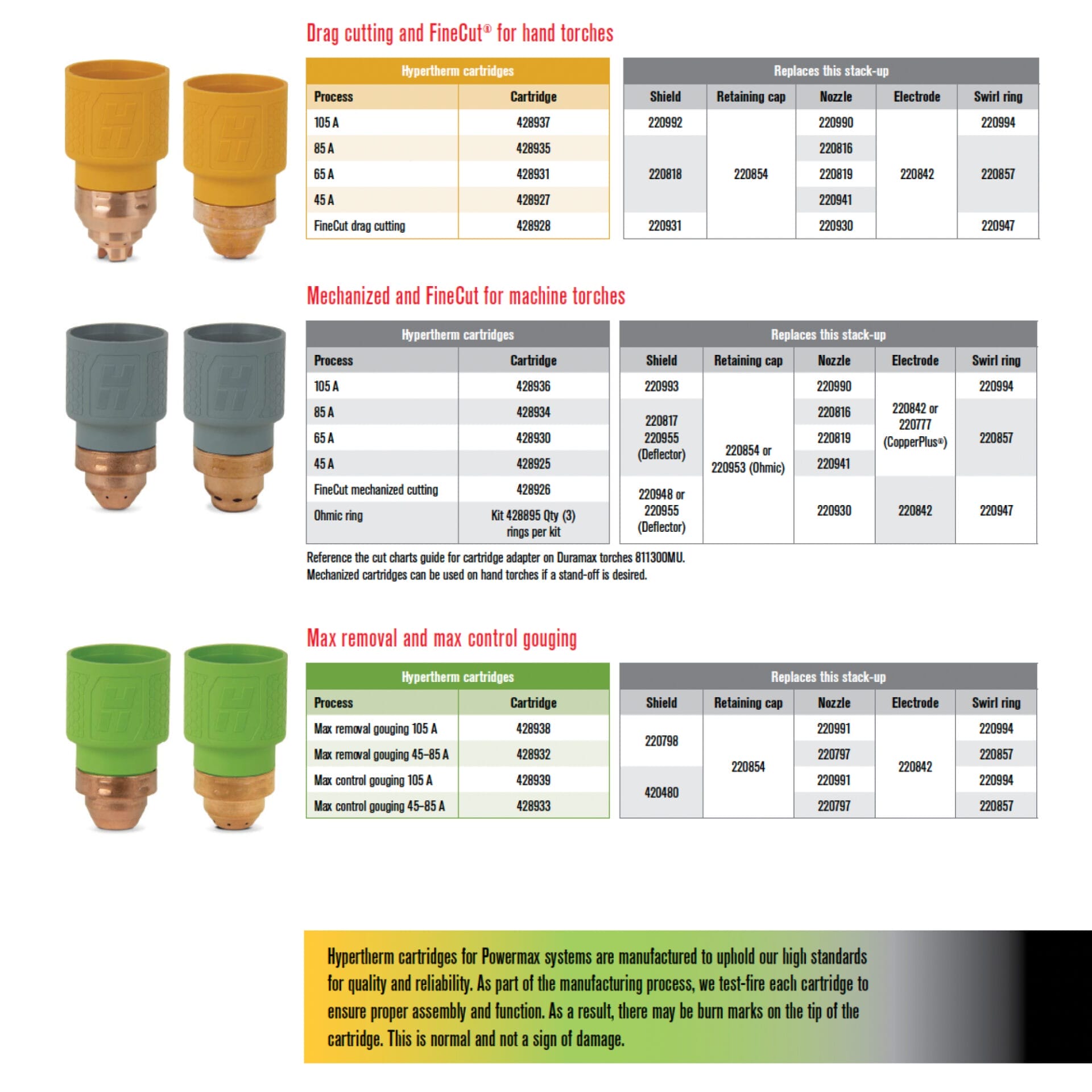

Do Cartridges work with an older Hypertherm® model?
This "Cartridge adapter" is only for the following. Limited functionality with Duramax and Duramax® Lock torches (found on Powermax45 XP/65/85/105). Requires separate torch adapter (Part No. 428951). Does not provide automated process set-up or data transfer. You do not require an adapter if you are purchasing a Hypertherm® Powermax105 SYNC™.
Please call 1-888-701-7101 to order this Cartridge adapter directly with us.
Click image to enlarge
Click image to enlarge
Click image to enlarge
Click image to enlarge
Got plans to Scribe or Mark your Materials?
Please know in advance that adding a non-Hypertherm® accessory to your torch may void your warranty. Please read your Manufacturer's Manual and Guide for more on Warranty information.
Click here to read Hypertherm® Warranty Information.
Most Do-it-Yourself Industrialists source a third-party product for scribing
with the Hypertherm® SYNC units, called EasyScriber.
Here is an installation video for SYNC units.
What's the real power behind the Powermax105 SYNC™?
Plasma Power Rating: 105 Amps (A) x 160 Volts (VDC) = 16,800 Watts (W)
16,800 WATTS of PLASMA POWER
Cut capacity
| Capacity | Thickness | Cut speed |
|---|---|---|
| Recommended | 32 mm (1-1/4″) | 500 mm/min (20 ipm) |
| 38 mm (1-1/2″) | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 50 mm (2″) | 125 mm/min (5 ipm) |
| Pierce* | 22 mm (7/8″) |
*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.
Maximum removal gouging
| Capacity | Metal removal rate | Gouge profile |
|---|---|---|
| Typical gouge | 8.6 kg (19.1 lbs.) per hour | 6.6 mm D x 6.0 mm W (0.26″ D x 0.24″ W) |
General specifications
Input voltages | 200–600 V, 3-PH, 50/60 Hz |
|---|---|
Kilowatt output | 16.8 kW |
Input current | 200/208/240/480/600 V, 3-PH 58/56/49/25/22 A @ 16.8 kW |
Output current | 30–105 A |
Rated output voltage | 160 VDC |
Duty cycle @ 104° F | 70% @ 105 A, 240 V, 3-PH 80% @ 105 A, 480–600 V, 3-PH 100% @ 94 A, 480–600 V, 3-PH 100% @ 88 A, 240 V, 3-PH |
Open circuit voltage (OCV) | 300 VDC |
Dimensions with handles | 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H) |
Weight w/7,6 m (25′) torch | 45.3 kg (95 lbs.) |
Gas supply | Clean, dry, oil-free air or nitrogen |
Optimum inlet gas pressure | 7.6–8.3 bar (110–120 psi) |
Minimum inlet gas pressure | 5.5 bar (80 psi) |
Recommended inlet gas flow rate | Cutting: 260 I/min @ 5.9 bar (550 scfh, 9.2 scfm @ 90 psi) Gouging: 260 I/min @ 4.8 bar (550 scfh, 9.2 scfm @ 70 psi) |
Input power cable length | 3 m (10′) |
Power supply type | Inverter–IGBT |
Engine drive requirement | 30 kW for full 105 A output |
Certifications | CSA-certified for use in the Americas and Asia, except China |
Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty |
Have any Hypertherm® Manuals I can look at?

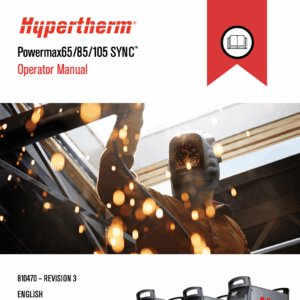

Operator Manual
Mechanized Guide

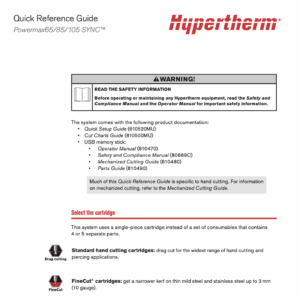

Reference Guide

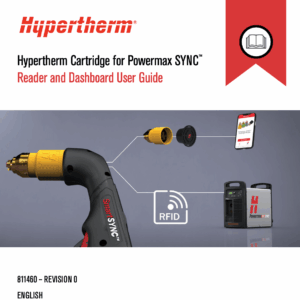

Reader User Guide
Cartridge Reader Instructions
