TECHTALK - TABLE ADVICE

CONTROL BOX

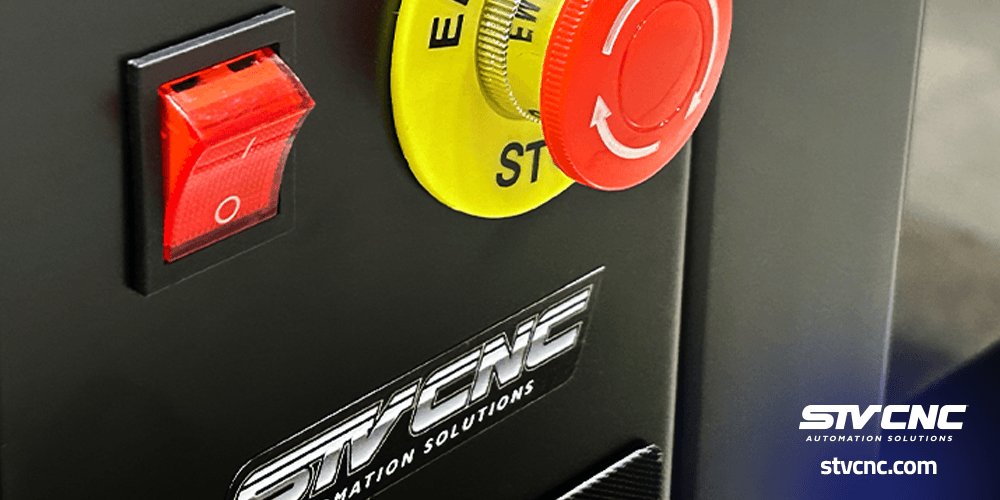

TURN YOUR CONTROL BOX OFF OVERNIGHT

Not turning your control box overnight may cause “state drift or signal integrity” problems. With your controller system, a few very specific things can cause exactly that behavior:

Not turning your Control Box OFF may cause:

1. Stepper Pulse Drift / Buffer Glitch

If the controller stays powered for long periods, the internal buffers or timers can desync slightly. Pulse timing to stepper drivers may become inconsistent. Result: axes don’t move the exact commanded distance. You are the watchdog reset, so it is important to turn the system off to allow for a system reset.

2. Thermal Drift on the Control Board

Leaving it ON overnight may cause a “heat soak”. Components inside may drift slightly with temperature. Clock timing shifts throws motion math slightly “off”. Stepper drivers may also behave inconsistently.

3. Noise Accumulation / EMI Instability

Over time, electrical noise can corrupt signals, axis missteps, have sudden shifts mid-cut, Jagged or offset toolpaths, especially if grounding/shielding isn’t perfect. The THC (torch height control) or limit signals may float.

4. Lost Step Accumulation (Stepper Systems)

If your system is open-loop (no encoders), any missed step equals permanent position error. Overnight idle can cause Motor holding torque weakening, micro-vibrations or electrical jitter. First moves next day start from a false position.

5. Memory / Register Corruption

For Computers/Controllers, registers should be refreshed after long idle states. If not then it may retain partial job data or motion states.

6. Power Supply Instability

If the power supply is left ON overnight, the PSU may heat up causing the voltage to slightly drop or fluctuate. A 5V logic rail instability may equal a bad signal timing, which can cause inconsistent step pulses and the driver may misfire, causing skewed cuts.

Power Cycling fixes this issue.

When you turn the box OFF:

– Resets timers

– Clears memory/registers

– Stabilizes voltage rails

– Resyncs step generation
