STV® Parameters for Hypertherm85®

The following Hypertherm® Plasma Cut Settings have been re-arranged specifically for STV®CNC Plasma Table Owners. (For Air Plasma Shielded Consumables).  Select any of the Hypertherm models below to quick jump to the corresponding section:

Click here for Consumables

Hypertherm 85®
Mild Steel - Standard Consumables

Material thickness Cut Speed 1 Cut Speed 2 Cutting Height THC Piercing Height Piercing Time Floating Height
10 Gauge
250
230
0.06
122
0.15
200
0.5
3/16"
185
165
0.06
123
0.15
200
0.5
1/4"
130
110
0.06
123
0.15
500
0.5
3/8”
70
50
0.06
126
0.15
500
0.5
1/2"
45
25
0.06
131
0.18
500
0.5
5/8"
35
15
0.06
134
0.18
1000
0.5
3/4"
24
4
0.06
136
0.24
1500
0.5
7/8"
19
14*
0.06
139
Edge Start
Edge Start
0.5
1"
13
8*
0.06
142
Edge Start
Edge Start
0.5
1-1/8"
9
4*
0.06
145
Edge Start
Edge Start
0.5
1-1/4"
7
2*
0.06
148
Edge Start
Edge Start
0.5
Please Note: “Floating height” has been set at 0.5” inch as default, but can be changed to your preference.
Please Note: “Cut Speed 2” has been set 20” in/min slower than “Cut Speed 1”. Adjust Accordingly within 20-40” in/min.
Please Note: “Cut Speed 2” with a ( * ) has been set 5” in/min slower than “Cut Speed 1”. Adjust Accordingly within 5 – 8” in/min.
Gas Flow Rate – slpm/scfh: 190/400 Hot (cut flow); 235/500 Cold (post flow)

Click here for Consumables

Hypertherm 85®
Stainless Steel - Standard Consumables

Material thickness Cut Speed 1 Cut Speed 2 Cutting Height THC Piercing Height Piercing Time Floating Height
10 Gauge
275
255
0.06
122
0.15
200
0.5
3/16"
200
180
0.06
122
0.15
200
0.5
1/4"
130
110
0.06
122
0.15
500
0.5
3/8”
65
45
0.06
126
0.15
500
0.5
1/2"
36
16
0.06
132
0.18
500
0.5
5/8"
28
8
0.06
135
0.18
1000
0.5
3/4"
20
15*
0.06
137
Edge Start
Edge Start
0.5
7/8"
16
11*
0.06
140
Edge Start
Edge Start
0.5
1"
11
6*
0.06
143
Edge Start
Edge Start
0.5
Please Note: “Floating height” has been set at 0.5” inch as default, but can be changed to your preference.
Please Note: “Cut Speed 2” has been set 20” in/min slower than “Cut Speed 1”. Adjust Accordingly within 20-40” in/min.
Please Note: “Cut Speed 2” with a ( * ) has been set 5” in/min slower than “Cut Speed 1”. Adjust Accordingly within 5 – 8” in/min.
Gas Flow Rate – slpm/scfh: 190/400 Hot (cut flow); 235/500 Cold (post flow)

Click here for Consumables

Hypertherm 85®
Aluminum - Standard Consumables

EXPLOSION HAZARD – CUTTING WITH ALUMINUM NEAR WATER. Do not cut aluminum alloys underwater or on a water table UNLESS you can prevent the accumulation of hydrogen gas. Never cut aluminum-lithium alloys in the presence of water. Aluminum can react with water to produce hydrogen, resulting in a potentially explosive condition that can detonate during plasma cutting operations. Refer to the Safety and Compliance Manual (80669C) for more information.

Material thickness Cut Speed 1 Cut Speed 2 Cutting Height THC Piercing Height Piercing Time Floating Height
1/8"
300
280
0.06
122
0.15
200
0.5
1/4"
130
110
0.06
127
0.15
500
0.5
3/8"
80
60
0.06
132
0.15
500
0.5
1/2"
50
30
0.06
135
0.18
500
0.5
5/8"
38
18
0.06
139
0.18
1000
0.5
3/4"
25
20*
0.06
142
Edge Start
Edge Start
0.5
7/8"
20
15*
0.06
144
Edge Start
Edge Start
0.5
1"
14
9*
0.06
146
Edge Start
Edge Start
0.5
Please Note: “Floating height” has been set at 0.5” inch as default, but can be changed to your preference.
Please Note: “Cut Speed 2” has been set 20” in/min slower than “Cut Speed 1”. Adjust Accordingly within 20-40” in/min.
Please Note: “Cut Speed 2” with a ( * ) has been set 5” in/min slower than “Cut Speed 1”. Adjust Accordingly within 5 – 8” in/min.
Gas Flow Rate – slpm/scfh: 190/400 Hot (cut flow); 235/500 Cold (post flow)

For 45A & 65A Settings on your Hypertherm 85® Plasma Cutting System, please refer to your Hypertherm® Manual.

Buy Hypertherm® Consumables

As an OEM authorized distributor, we want to be your dependable source for Hypertherm® units, consumables and accessories. You will find a selection of FineCut® and Regular Consumables specific to the Powermax® torch you have. Clicking on “Read more” will redirect you to our Hypertherm® Consumable Hub for quick drop-to-cart ordering.

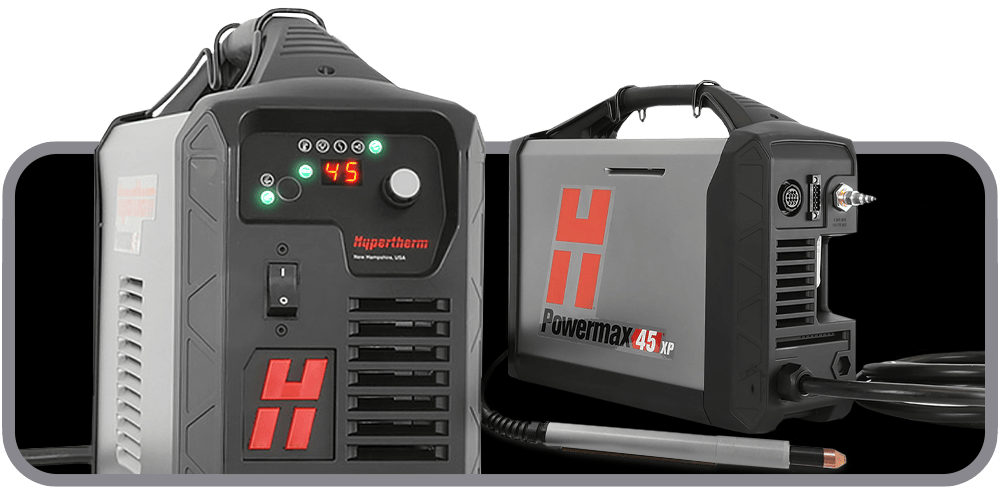

Hypertherm® Powermax45® XP $2499

1/2” INCH PIERCE. Meet the newest member of the best-selling line of Powermax® portable plasma systems. The Powermax45® XP plasma cutter delivers increased cut capacity – up to 5/8″ inch (16 mm) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation.

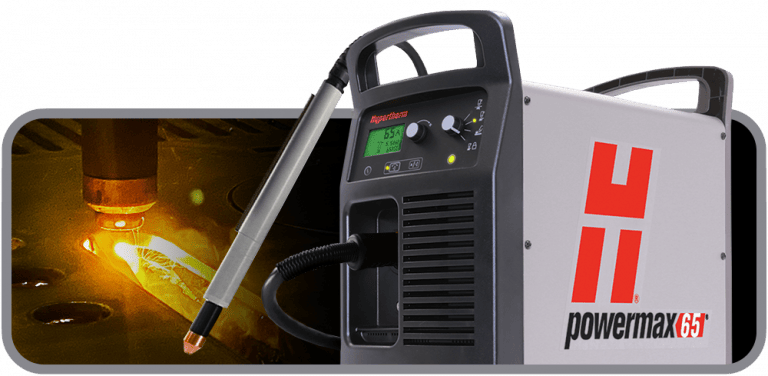

Hypertherm® Powermax65®  $3499

5/8″ INCH PIERCE. The Powermax65® plasma system is a versatile machine for heavy-duty cutting and gouging in demanding environments. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure.

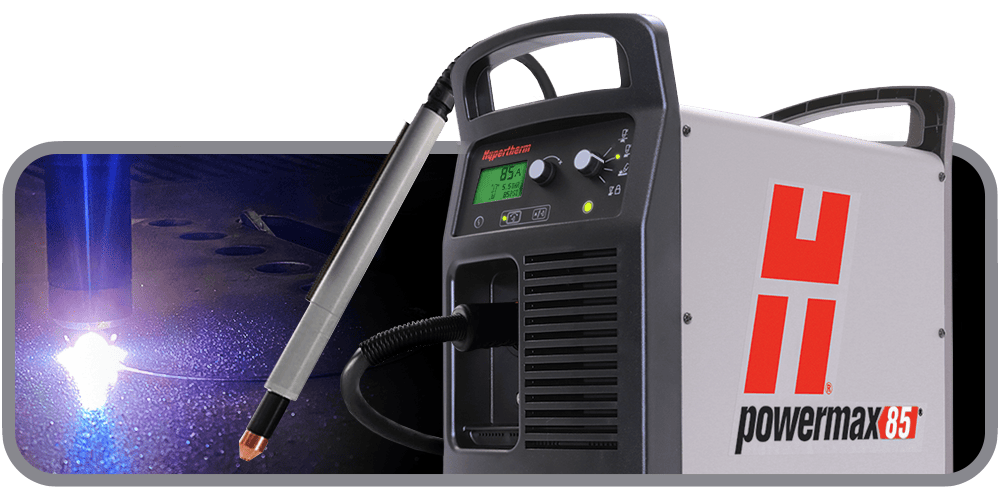

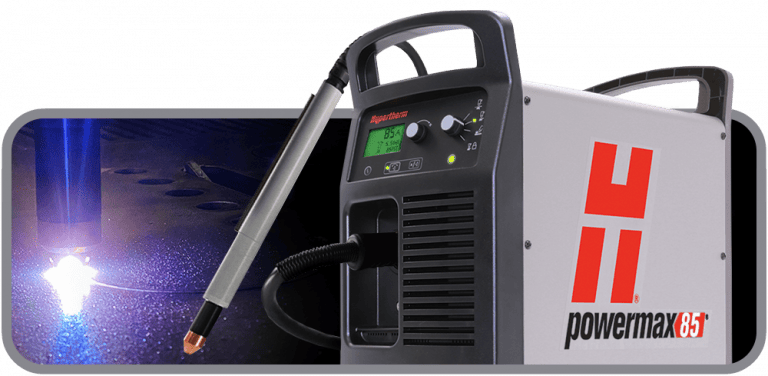

Hypertherm® Powermax85®  $4499

3/4″ INCH PIERCE. The premier system for cutting 1″ inch (25 mm), the Powermax85® has the same features and options as the Powermax65®, but with more power from an output current of 85 amps. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure.

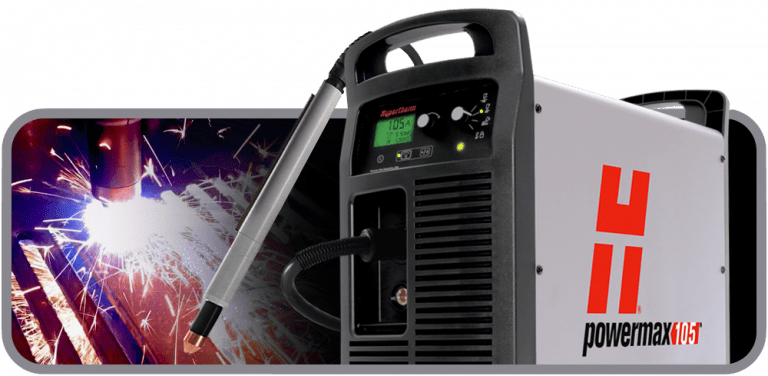

Hypertherm® Powermax105®  $5999
