STV® Parameters for Hypertherm 65®
The following Hypertherm® Plasma Cut Settings have been re-arranged specifically for STV®CNC Plasma Table Owners. (For Air Plasma Shielded Consumables). Select any of the Hypertherm models below to quick jump to the corresponding section:
Click here for Consumables

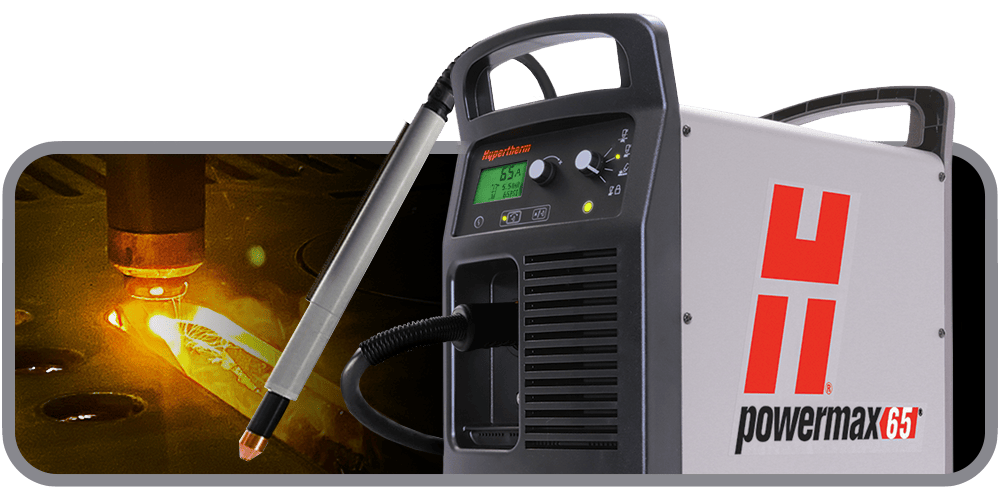

Hypertherm 65®
Mild Steel - Standard Consumables
| Material thickness | Cut Speed 1 | Cut Speed 2 | Cutting Height | THC | Piercing Height | Piercing Time | Floating Height |
|---|---|---|---|---|---|---|---|
|
10 Gauge |
190 |
170 |
0.06 |
125 |
0.15 |
100 |
0.5 |
|
3/16" |
140 |
120 |
0.06 |
126 |
0.15 |
200 |
0.5 |
|
1/4" |
90 |
70 |
0.06 |
127 |
0.15 |
500 |
0.5 |
|
3/8” |
45 |
25 |
0.06 |
130 |
0.15 |
700 |
0.5 |
|
1/2" |
30 |
10 |
0.06 |
135 |
0.18 |
1200 |
0.5 |
|
5/8" |
23 |
3 |
0.06 |
138 |
0.24 |
2000 |
0.5 |
|
3/4" |
15 |
10* |
0.06 |
141 |
Edge Start |
Edge Start |
0.5 |
|
7/8" |
12 |
7* |
0.06 |
143 |
Edge Start |
Edge Start |
0.5 |
|
1" |
8 |
3* |
0.06 |
145 |
Edge Start |
Edge Start |
0.5 |
Please Note: “Floating height” has been set at 0.5” inch as default, but can be changed to your preference.
Please Note: “Cut Speed 2” has been set 20” in/min slower than “Cut Speed 1”. Adjust Accordingly within 20-40” in/min.
Please Note: “Cut Speed 2” with a ( * ) has been set 5” in/min slower than “Cut Speed 1”. Adjust Accordingly within 5 – 8” in/min.
Gas Flow Rate – slpm/scfh: 160/340 Hot (cut flow); 220/470 Cold (post flow)
Click here for Consumables
Hypertherm 65®
Stainless Steel - Standard Consumables
| Material thickness | Cut Speed 1 | Cut Speed 2 | Cutting Height | THC | Piercing Height | Piercing Time | Floating Height |
|---|---|---|---|---|---|---|---|
|
10 Gauge |
240 |
220 |
0.06 |
125 |
0.15 |
100 |
0.5 |
|
3/16" |
155 |
135 |
0.06 |
126 |
0.15 |
200 |
0.5 |
|
1/4" |
80 |
60 |
0.06 |
126 |
0.15 |
500 |
0.5 |
|
3/8” |
40 |
20 |
0.06 |
131 |
0.15 |
700 |
0.5 |
|
1/2" |
26 |
6 |
0.06 |
136 |
0.18 |
1200 |
0.5 |
|
5/8" |
20 |
15* |
0.06 |
139 |
Edge Start |
Edge Start |
0.5 |
|
3/4" |
14 |
9* |
0.06 |
142 |
Edge Start |
Edge Start |
0.5 |
Please Note: “Floating height” has been set at 0.5” inch as default, but can be changed to your preference.
Please Note: “Cut Speed 2” has been set 20” in/min slower than “Cut Speed 1”. Adjust Accordingly within 20-40” in/min.
Please Note: “Cut Speed 2” with a ( * ) has been set 5” in/min slower than “Cut Speed 1”. Adjust Accordingly within 5 – 8” in/min.
Gas Flow Rate – slpm/scfh: 160/340 Hot (cut flow); 220/470 Cold (post flow)
Click here for Consumables
Hypertherm 65®
Aluminum - Standard Consumables
EXPLOSION HAZARD – CUTTING WITH ALUMINUM NEAR WATER. Do not cut aluminum alloys underwater or on a water table UNLESS you can prevent the accumulation of hydrogen gas. Never cut aluminum-lithium alloys in the presence of water. Aluminum can react with water to produce hydrogen, resulting in a potentially explosive condition that can detonate during plasma cutting operations. Refer to the Safety and Compliance Manual (80669C) for more information.
| Material thickness | Cut Speed 1 | Cut Speed 2 | Cutting Height | THC | Piercing Height | Piercing Time | Floating Height |
|---|---|---|---|---|---|---|---|
|
1/16" |
365 |
345 |
0.06 |
121 |
0.15 |
100 |
0.5 |
|
1/8" |
280 |
260 |
0.06 |
124 |
0.15 |
100 |
0.5 |
|
1/4" |
105 |
85 |
0.06 |
131 |
0.15 |
500 |
0.5 |
|
3/8" |
50 |
30 |
0.06 |
135 |
0.15 |
700 |
0.5 |
|
1/2" |
35 |
15 |
0.06 |
139 |
0.18 |
1200 |
0.5 |
|
5/8" |
26 |
21* |
0.06 |
143 |
Edge Start |
Edge Start |
0.5 |
|
3/4" |
16 |
11* |
0.06 |
146 |
Edge Start |
Edge Start |
0.5 |
