Hypertherm® Powermax125® Plasma System


1” INCH PIERCE. Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 1″ inch (25 mm) mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.

spec sheet

Hypertherm® Purchase includes: Plasma System, STV®CNC CPC cable ($200 value), work clamp, set of standard consumables & a 25ft. mechanized torch. IMPORTANT: Depending on the model you select, Plasma Cutting System lead times fall into a queue list for each model series as we receive them from Hypertherm® and out to you. In 100% transparency, we strive to deliver a well-rounded experience. Feel free to call us to chat about lead times. 1-888-701-7101.

Finish jobs faster with this highly functional plasma system
  • Plasma cutter with superior cut and gouge quality.
  • Machine torch that’s designed for high-impact work.
  • All in one plasma cutting system lets you tackle a wide variety of jobs.
Looking to get jobs done faster with a plasma system that you can rely on? Then the Hypertherm® Powermax125® Plasma System is the perfect plasma cutting system for you. With cut speeds three times greater than other plasma systems, and unrivaled cut and gouge quality, the Powermax125® offers some of the best machine cutting systems around. This all in one plasma system has several torch styles that allow you to tackle a wide variety of jobs without having to change to a different machine. This easy to use plasma cutter is built to handle the toughest of jobs. Get your Powermax125® Plasma System online today.
  • Weighs around 100 lbs depending on attachments
  • Uses clean air or nitrogen
  • CSA certified to use in Americas and Asia (except China)
  • Height: 20”, Width: 11”
Maximum productivity
  • Finish jobs faster with cut speeds three times greater than oxyfuel on 12 mm (1/2″) mild steel

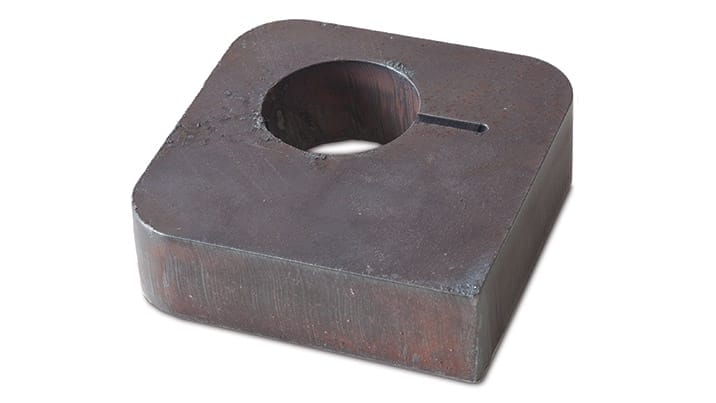

  • Superior cut and gouge quality let you spend less time on grinding and edge preparation
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system
Easy-to-use for cutting and gouging
  • No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set; it also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece
  • SpringStart™ technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
Built to handle tough jobs
  • Hypertherm® Certified™ reliability ensures peak performance even in the harshest environments
  • Duramax torches are designed for high-impact and heat resistance


Input voltages CSA 480/600 V, 3-PH, 50/60 Hz
CE 400 V, 3-PH, 50/60 Hz
CCC 380 V, 3-PH, 50/60 Hz
Input current @ 21.9 kW 300/400/480/600 V, 38/36/31/24 A
Output current 30 – 125 A
Rated output voltage 175 VDC
Duty cycle @ 40°C (104°F) 100% @ 125 A
Open circuit voltage (OCV)
  • 400/600 CSA: 320 VDC
  • 380 V CCC: 290 VDC
  • 400 V CE: 305 VDC
Dimensions with handles 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H)
Weight with 7.6 m (25′) torch
  • 480 V, 47,9 kg (105.7 lbs)
  • 600 V, 47,5 kg (104.7 lbs)
  • 380 V, 45,2 kg (99.6 lbs)
  • 400 V, 48,9 kg (107.8 lbs)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate / pressure Cutting: 260 l/min (550 scfh) @5.9 bar (85 psi) Gouging: 212 l/min (450 scfh) @4.1 bar (60 psi)
Input power cable length 3 m (10′) *
Power supply type Inverter – IGBT
Engine drive requirement 40 kW for full 125 A output
Certifications CSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China.
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.
*No power cord on some CCC models.
Engine-driven generator operation
Engine drive rating System output current Performance (arc stretch)
40 kW 125 A Full
30 kW 125 A Limited
30 kW 100 A Full
25 kW 100 A Limited
22.5 kW 75 A Full
20 kW 75 A Limited
20 kW 60 A Full
15 kW 60 A Limited
12 kW 40 A Full
10 kW 40 A Limited
10 kW 30 A Full
8 kW 30 A Limited
Weight 150 oz
Dimensions 34 × 25 × 28 in
