TOP FEATURES
The following set of features come included in the purchase of your STV®R Router Table. Below the Gallery you will find more details.
STV®CNC AUTOMATION SOLUTIONS. ALL RIGHTS RESERVED. PLEASE NOTE THE TV DISPLAY MONITOR, KEYBOARD, WIRELESS MOUSE, MOUSEPAD & WORK SHOP CART SHOWN ABOVE ARE NOT INCLUDED IN YOUR PURCHASE.
Tap these INFOTABS below for detailed specs on this STV®R 5.

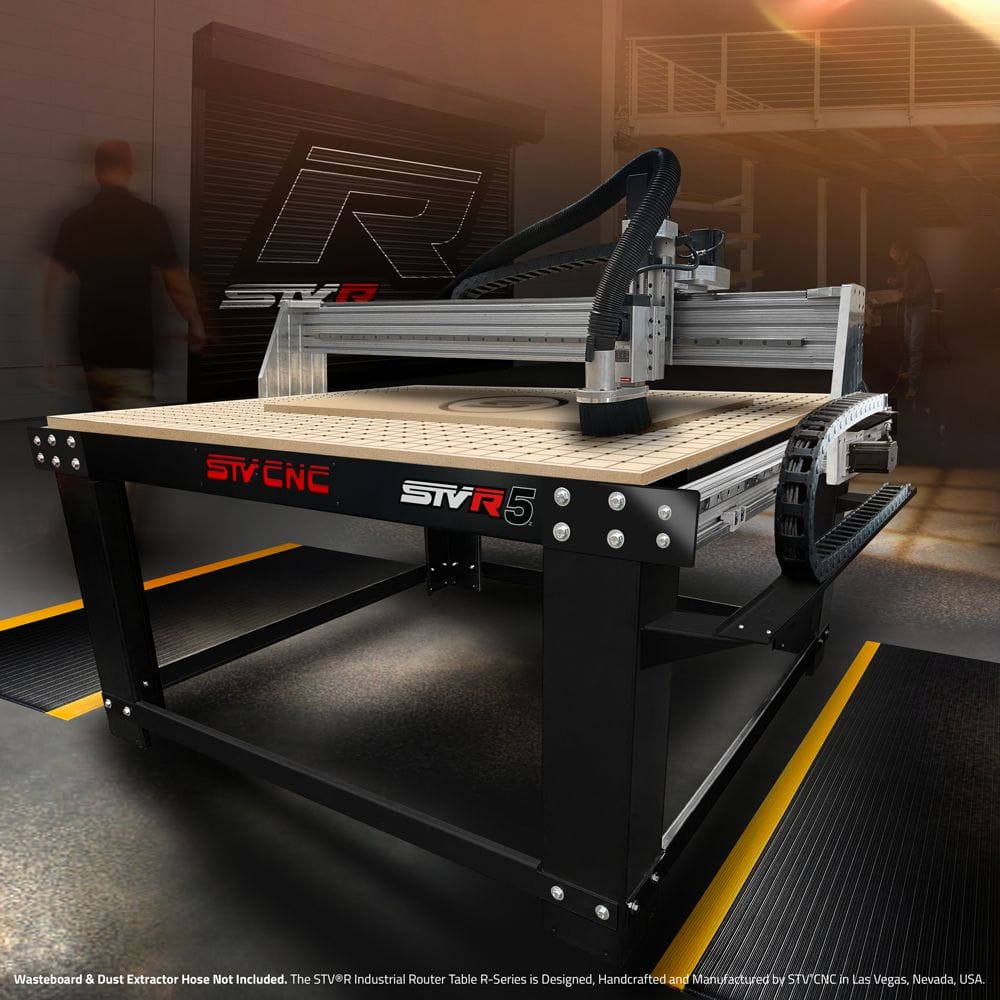

The Modular STV®R 5 Router Base Model includes::
➤ 5′ W x 5′ L Cutting Envelope Work Area
➤ Sturdy, Laser Cut Modular Frame (assembly required)
➤ (4) Industry Standard Motors & Mounts (1:1 Direct Drive Gear Ratio)
➤ 110V Floating Control Box w/ Magnetic Vent Cover & E-Stop
➤ Controller Ethernet Connectivity ( 6′ foot long cable)
➤ Lower Leg Brace Supports
➤ Upper Cross Brace Supports for Wasteboard
➤ Tri-Axis Hardened & Ground Linear Guide Rails w/ Gliding Carriages
➤ Advanced Cable Management & Automation Wiring
➤ Industrial Built Gantry & Interchangeable Cable Track Tray
➤ Z-Axis Billet Precision Ball Lead Screw for Spindle
➤ Important: Wasteboard, Wasteboard Fasteners and Dust Extractor Hose are not included.
Included Spindle:
➤ Air-cooled 2.2 kW (3HP) Low-Noise* Spindle
➤ Speed: 24,000RPM
➤ Volts: 110V; Asynchronous 3 Phase Motor
➤ Material: Aluminum Protective Housing
➤ Directions: Spins Clockwise & Counterclockwise
➤ Certifications: CE, ISO9001
➤ Attached Cooling Fan for Heat Dissipation.
➤ Includes High Precision ER20 Collet for 1/4″ inch Tools/Router Bits. (CNC tool holder to lock your bit in place.)
➤ Includes High Precision ER20 Collet for 1/2″ inch Tools/Router Bits. (CNC tool holder to lock your bit in place.)
*Level of Spindle Noise depends on the choice of speed, material and tool used.
Includes VFD:
➤ Variable Frequency Driver (drives the speed of spindle)
➤ Pre-configured with our Industry Standard Settings to optimize Spindle’s Performance.
➤ 110V Single Phase Input, 110V 3-Phase Output
➤ Frequency: 50Hz/60Hz Input; 0-400Hz Output
➤ Over Voltage Protection
➤ Current limiting
➤ S-Curve Ramp-up/Ramp-down time (Acceleration/Deceleration)
➤ Low Electromagnetic Interference
Includes Dust Shoe:
➤ Magnetic Quick Release Action for Bit Changing
➤ Additional Secured Dust Boot Clamp Ring
➤ Manufactured in-house out of Aluminum
➤ Preventive Long-hair Bristle Strip to gather dust & debris
➤ Standard 2.5″ inch Dust Port for Dust Collection Hose fitting
➤ Allows for Multidirectional positioning
Includes Mini PC & Control Software:
➤ Dedicated, Fanless Mini PC with 2.5 GHz Intel Dual-Core Processor & 4GB RAM.
➤ Optimum™ CNC Control Software Package Installed.
➤ Essential for 2D/3D Contouring
➤ Software OS: Linux
➤ File types: TAP, TXT, NC, DNC, ISO, CNC
➤ Ports: Audio, LAN1, LAN2, HDMI, COM1, COM2, USB 2.0, USB 3.0, VGA, WiFi, DC12V Unit.
➤ Important: The STV®R includes a MINI PC and necessary cabling. You will be required to source a Display monitor, keyboard and mouse.
Attention: The MINI PC is not for creating ART DESIGN FILES.
SOLUTION FOR CREATING ART DESIGN FILES: An option for creating and managing design files is to consider obtaining a dedicated laptop or computer to create design files and transfer from the Computer to the MINI PC via USB. Minimum requirements in searching for a Design-dedicated Computer/Laptop: 3 GHz Computer or Laptop, Windows 10 or higher, with 16 GB RAM, 250 MB storage, 2 USB ports & Ethernet port.
Troubleshooting Topic? Please contact Tech Support at www.stvcnc.com/support
IMPORTANT: PLEASE NOTE THE TV DISPLAY MONITOR, KEYBOARD, WIRELESS MOUSE, MOUSEPAD & WORK SHOP CART SHOWN IN THE GALLERY ABOVE ARE NOT INCLUDED IN YOUR PURCHASE.
Includes Automatic Homing Kit:
➤ Automatically set your table to X=0, Y=0, Z=0.
➤ Makes Homing the table fast and easy.
➤ Four (4) Proximity Sensors
➤ Ensures proper Soft Limits function
➤ Great for Tool Repositioning
➤ Cabling & brackets included
➤ T-slot fasteners included
➤ Ensures Gantry Alignment and project squaring.
Includes Support:
➤ One Year Warranty from Date of Purchase.
➤ Dedicated Troubleshooting from our STV® Tech Support Team by phone 1-888-701-7101.
➤ STV® Ticketing System for Additional Troubleshooting: stvcnc.com/support
➤ Facebook Community Private Group Access.
➤ Facebook Group Access to Documentation & Files.
➤ Support from other Router Table Owners & STV® Team Members.
* We also love to support those who have chosen STV®CNC by promoting their craftsmanship, finished projects and their business or startup out to our global audience and marketing to increase their exposure.
Router Table Specifications:

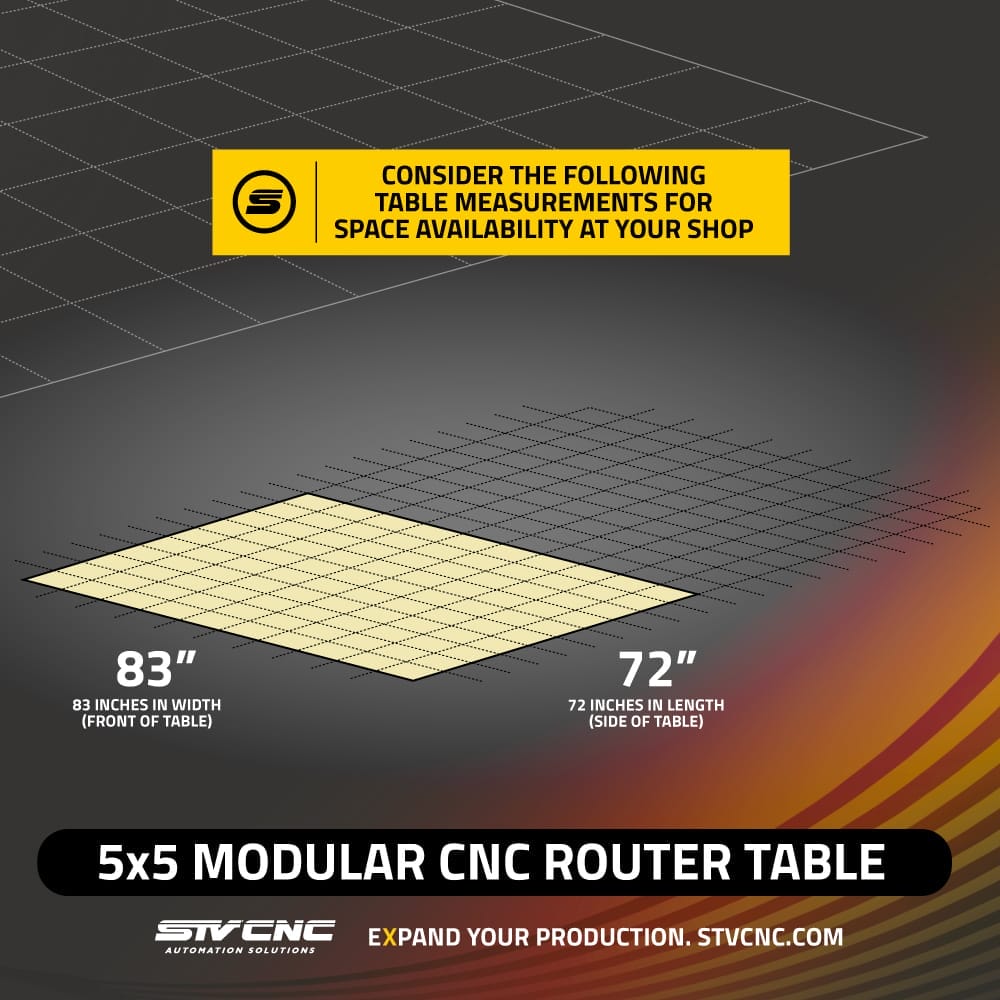

➤ Cutting Envelope Dimensions: 5’(W) x 5’(L)
➤ Breakdown: X = 60”, Y = 60”, Z-Axis travel = 5.75” inches Maximum
➤ Linear System: All Axis On Precision Ball Bearing Carriage Guide Rails
➤ Mechanical Drive System: X-Axis & Y-Axis Rack & Pinion, Made In USA
➤ Mechanical Drive System: Z-Axis – Full CNC’d Billet Precision Ball Lead-Screw
➤ System Interface: Linux OS
➤ Motion Accuracy: (+) or (-) 0.005” per 12″ inches
➤ Step Resolution: 0.0005” inches
➤ Default Maximum Travel Speed: 600″ inches per minute.
➤ Input Power: 110V AC 15A Circuit
➤ Table Surface: Slotted Support Braces to fasten a solid wasteboard down.
➤ Input Power: 110V AC for the Router Table
➤ System Ratio: 1:1 Direct Drive Gear Ratio
TAKE A TOUR OF STV®CNC IN LAS VEGAS
Las Vegas is home to our STV®CNC family of dedicated staff members. We would love to have you see our 50,000 sq. ft. Headquarter Operations.
UPGRADES
GEAR REDUCTION SYSTEM
LEVELING FEET
TOOL SETTER
AMANA TOOL® BIT
5-PC COLLECTION
POWERSTATION
GEAR REDUCTION SYSTEM
The STV®CNC Gear Reduction System are 3 (X, Y & Z) separate mounted stepper motors with belt-driven gears to increase precision & gliding fluidity. The ultimate benefit is that the Torque, Weight and Wear lean toward the belt offering the motor to focus on increased speed and fluid motion. The Gear Reduction System increases your standard 1:1 Gear Ratio up to a 3:1 Gear Reduction Gear Ratio. Handcrafted Cable Wiring fastens into your Router Table. The Kit is designed, manufactured, assembled & tested in-house.
Click here for Gear Reduction Chart.
LEVELING FEET
STV®CNC Skid-Resistant Leveling Feet
➤ Leveling feet will come in handy on keeping a leveled table on your production grounds.
➤ Includes Inner Support Brackets we fabricate in-house along with Fasteners & Swivel Screw base.
➤ Installs into your STV®CNC Modular Frame legs.
➤ Raise or drop within a 2” inch range to your desired height.
TOOL SETTER
Wireless Tool Setter Kit Includes:
➤ Wireless Transmitter Gauge (2.4V~3.6V DC)
➤ Wired Receiver (5~24V DC)
➤ Tool Setter has a “Trigger” Indicator Light.
➤ Tool Setter has a “Low Battery” Indicator Light.
➤ Tool Setter has a “Receiver Confirmation” Indicator Light.
* IMPORTANT: Transmitter Trigger Gauge Requires (2) AAA Batteries ( Not Included )
AMANA TOOL® BIT
Amana Tool® Includes:
➤ Industrial Insert Solid Carbide Spoilboard Router Bit (#RC-2265-M)
+ Great for CNC 3 Wing Heavy Duty Spoilboard Surfacing, Planing, Flycutter & Slab Leveler
+ Specs: Diameter: 1.5″ in.; Cutting Height: 0.75″ in.; Shank: 6mm; Overall Length 2″ in.; MaxRPM: 18,000
*Amana Tool® Router Bit Ordering Experience Coming Soon.
5-PC COLLECTION
Amana Tool® 5-PC Router Bit Collection Includes:
➤ Industrial Starter Engraving CNC 5-PC Router Bit Collection (#AMS-127)
+ (#46282) 1/16″ Diameter, 1/32″ Radius, 4 Flute Up-Cut Spiral Tapered Ball Nose, ZrN Coated
+ (#46286) 1/8″ Diameter, 1/16″ Radius, 3 Flute Up-Cut Spiral Tapered Ball Nose, ZrN Coated
+ (#46102) 1/4″ Diameter, 2 Flute Down-Cut Spiral
+ (#45705) 1/2″ Diameter, 2 Flute V-Groove 60° Degree Angle
+ (#45700) 3/8″ Diameter, 2 Flute V-Groove 90° Degree Angle
*Amana Tool® Router Bit Ordering Experience Coming Soon.
POWERSTATION
Click here to READ MORE. 42″ inch Mobile Workstation Cart. Maximize your workspace with this Double Shelf PC standing desk as its adjustable height improves production house mobility. Includes 15′ ft. Triple Outlet Power Strip, Cabinet w/ Lock, Gliding Tray & Locking Caster Wheels. Recommended Indoor Use Only. ( 19.5″L x 24.875″W x 42″H ) ASSEMBLY REQUIRED.
STV®CNC AUTOMATION SOLUTIONS. ALL RIGHTS RESERVED. THE STV®R INDUSTRIAL CNC ROUTER TABLE R-SERIES IS DESIGNED, HANDCRAFTED & MANUFACTURED IN LAS VEGAS, NV, USA. | MADE IN THE USA.
▻ IMPORTANT PLEASE READ ◅
We want to make sure you are aware of all things considered when purchasing an STV®CNC STV®R Router Table. You will be required to source the following items: ( the following list is not included in your purchase )
WASTEBOARD: You will be required to obtain a set of Wasteboards. (To be sure of wasteboard coverage, once your router table is fully built and ready, measure the surface area to cover and source your wasteboards area correctly.) Why are the Wasteboards not included? Many of our customers have a wide range of custom setup & tool preferences and in the light of saving one a bit more money we’ve opted to focus directly on our Router’s Components, Performance and Customer Support.
HOLE DRILLING: You will be required to source a drill to make holes into your Wasteboard for fastener installation. You will be required to source a 0.270 drill bit and a 3/4″ diameter Single Flute 82° Degree Countersink Angle drill bit.
FASTENERS: You will be required to source your choice of bolt & nut fasteners for your Wasteboard. Slotted holes will guide the fastening process. You will be required to fasten your waste board with metal fasteners for the table’s perimeter all around and Nylon fasteners for the inner areas. The Screw and Nuts for this are Nylon Flat head 82° Degree Countersink Angle at a 1/4″ x 20 x 2″ size.
DISPLAY ACCESSORIES: You will be required to source your choice of Computer Monitor, Keyboard & Mouse. The Mini PC included in your order will have HDMI, VGA and USB ports.
DUST REMOVAL: You will be required to source a Dust Collector or Dust Removal System with a clamping industry standard dust port connector hose.Why is the Dust Collector Hose not included? Many of our customers have a wide range of custom setup & tool preferences and in the light of saving one a bit more money we’ve opted to focus directly on our Router’s Components, Performance and Customer Support.
ROUTER BITS: You will be required to source premium woodworking router bits or tool bits that apply to the material you choose.
SPINDLE TOOLS: You will be required to source two crescent wrenches for changing out your router bits. (Wrench Sizes: 13/16″ and 1 – 3/16″)
CNC CLAMPS: You will be required to source router table clamps to fasten your stock to the working area for safety purposes.
MATERIALS TO CUT
TAB SECTION 4: Your craft projects can start with cutting 2D/3D designs and objects out of any of these material stock. *It is recommended one sources a test sample piece to cut on the Router Table before purchasing full-sized material stock. It is also recommended your workshop and employees have all the required safety requirements, PPE, equipment and measures in place when working with that choice of stock material.
SO MANY CRAFTY IDEAS!
TAB SECTION 5: Your New STV®R Router Table can be the begin of a FRESH START in an industry you’re passionate about. Below are some crafty ideas you may like to venture into.
CABINETRY, TABLES & FURNITURE
LETTERING & ENGRAVED PLAQUES
BIRD FEEDERS & GARDEN
SKATEBOARD TRIMS & DRILL
SNOWBOARD TRIMS & DRILL
HOME DECOR & FIRE PLACE MANTLES
ENGRAVED COASTERS
ENTRYWAY SIGNS & DOORMATS
CUSTOM SHELVING & COUNTERTOPS
MAIL SORTERS & ROOM DIVIDERS
CHAIR, BENCH & STEP STOOLS
MUG, COAT,
SHOES &
WINE RACKS
KEYRING & DOG LEASH HOLDER
WALKING STICKS & CANES
WOOD DECK, SAUNA & PLANTERS
WOODEN GAMES, TOYS & PUZZLES
WOOD FRAMES & BORDERS
KITCHEN CUTTING BOARDS & PIZZA PADDLES
SERVING TRAYS
& CHOPPING BOARDS
DISPLAY FIXTURES, MOLDS & PROTOTYPES
CHEESE & CHARCUTERIE BOARDS
WOOD GUITARS & INSTRUMENTS
WOODEN BANISTERS & LADDERS
COMMERCIAL & COMMEMORATIVE SIGNS
NEED A LARGER WORK AREA?
More production requires larger work spaces. To accommodate a wide variety of industrial preferences we also offer table sizes with 4×8 and 5×10 cutting envelopes.
