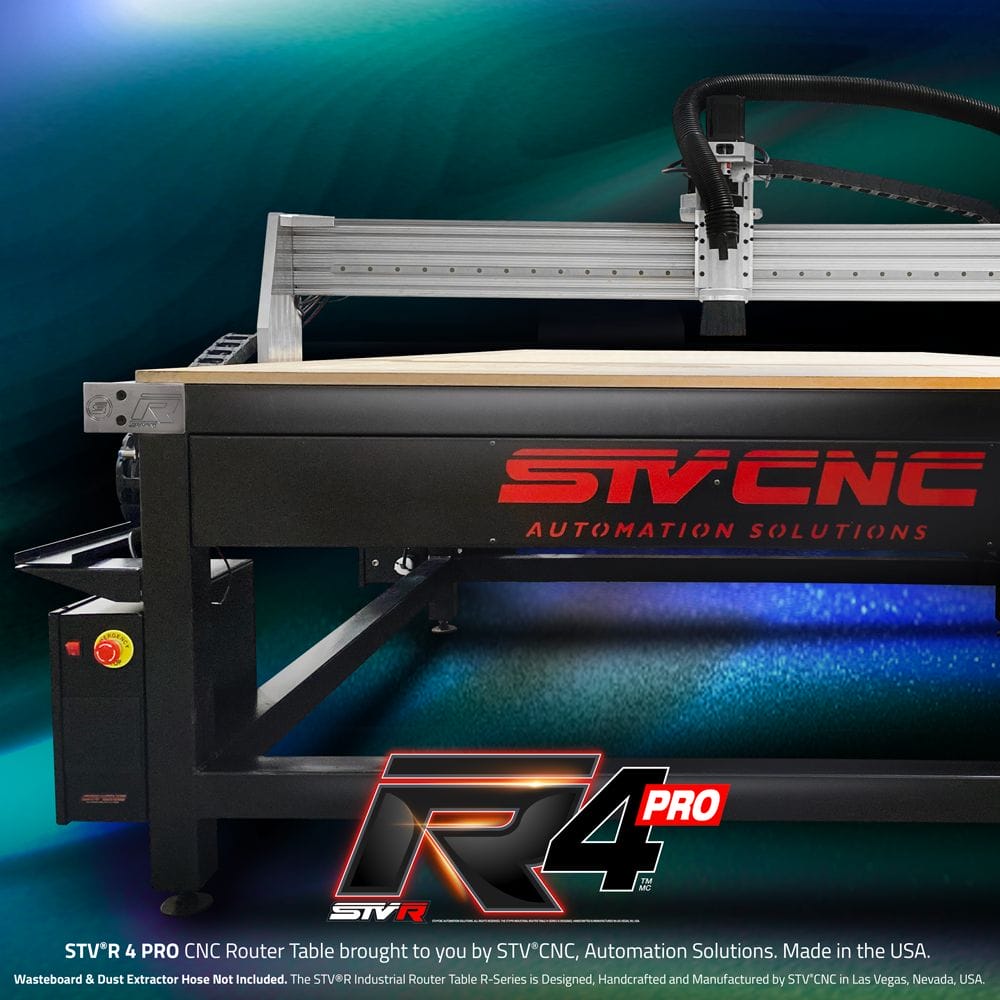

STV®R 4 PRO Router Table (Welded Frame)

$9,499.00

4 x 4 Welded Frame CNC Router Table. The fully assembled STV®R 4 Welded PRO is a robust, industrial-grade Router Table that offers fast, precise linear motion for 2D/3D Contouring with a precise motion system and a sturdy, heavy-duty build. Our product line consists of prime-selected components and backed by a long list of great features, exceptional lifetime support all within an affordable price. Cutting Envelope: ( 4′ W x 4′ L )  Important: Wasteboard and Dust Extractor Hose not included.  REVIEWS



INCLUDED FEATURES

  • RIGID, FULLY WELDED TUBULAR FRAME
  • TABLE COMES FULLY ASSEMBLED
  • OPTIMUM™ CNC CONTROL SOFTWARE PACKAGE
  • LINUX/WINDOWS DEDICATED FANLESS MINI PC
  • MAGNETIC QUICK RELEASE DUST SHOE
  • AIR-COOLED 2.2 kW (3HP) LOW-NOISE SPINDLE ( 24,000RPM )
  • ER20 COLLET INCLUDED
  • Z-AXIS BILLET PRECISION BALL LEAD SCREW
  • VARIABLE FREQUENCY DRIVER ( VFD with ACC/DEC )
  • ATTACHED 110V CONTROL BOX WITH E-STOP
  • MAGNETIC HOUSING VENT COVERS
  • AUTOMATION WIRING ( HANDCRAFTED & LABELED )
  • ADVANCED CABLE MANAGEMENT
  • INTERCHANGEABLE CABLE TRACK TRAY
  • STEPPER MOTOR SYSTEM ( 4 MOTORS )
  • 3:1 GEAR RATIO; GEAR REDUCTION SYSTEM
  • INTEGRATED HOMING KIT ( 4 PROXIMITY SENSORS )
  • FULLY ASSEMBLED INDUSTRIAL BUILT GANTRY
  • HARDENED & GROUND LINEAR GUIDE RAILS
  • DUAL GLIDING, BALL BEARING CARRIAGES
  • UPPER CROSS BRACE SUPPORTS FOR WASTEBOARD
  • PRECISE LINEAR MOTION FOR 2D/3D CONTOURING
  • INDUSTRIAL LEVELING FEET
  • ETHERNET CONNECTIVITY​
  • ONE YEAR WARRANTY
  • LIFETIME SUPPORT

IMPORTANT: Since the shipping of our fully assembled PRO ROUTER TABLES is individually calculated upon Freight Distance, before purchase, please contact us at 1-888-701-7101 about Shipping and Delivery Requirements.

Add an STV®CNC Upgrade

➤ The Tool Setter is helpful in zeroing the Z-Axis to the table. ( Read more )

➤ Spoilboard Router Bit for Surfacing, Planing, Flycutter & Slab Leveler. ( Read more )

➤ Industrial Starter Engraving CNC 5-PC Router Bit Collection.( Read more )

➤ Maximize your workspace with this Mobile Workstation Cart.( Read more )

Product price: $9,499.00
Total options:
Order total:
STVCNC STVR4 PRO Router

TOP FEATURES

The following set of features come included in the purchase of your STV®R Router Table. Below the Gallery you will find more details.

STV®CNC AUTOMATION SOLUTIONS. ALL RIGHTS RESERVED. PLEASE NOTE THE TV DISPLAY MONITOR, KEYBOARD, WIRELESS MOUSE, MOUSEPAD & WORK SHOP CART SHOWN ABOVE ARE NOT INCLUDED IN YOUR PURCHASE.

Tap these INFOTABS below for detailed specs on this STV®R 4.

stvcnc-lasvegas-headquarters-facility-vegas-machining-production-manufacturing-cnc-welding-plasmatable-laser-lathe-press-brake-milling-office-gallery-staff-main-office-operation

TAKE A TOUR OF STV®CNC IN LAS VEGAS

Las Vegas is home to our STV®CNC family of dedicated staff members. We would love to have you see our 50,000 sq. ft. Headquarter Operations.

UPGRADES

TAB SECTION 2: Add any of the following upgrades in the purchase of your STV®R PRO Router Table. Below the Gallery you will find more details.

▻ IMPORTANT PLEASE READ ◅

We want to make sure you are aware of all things considered when purchasing an STV®CNC STV®R Router Table. You will be required to source the following items: ( the following list is not included in your purchase )

WASTEBOARD: You will be required to obtain a set of Wasteboards. (To be sure of wasteboard coverage, once your router table is fully built and ready, measure the surface area to cover and source your wasteboards area correctly.) Why are the Wasteboards not included? Many of our customers have a wide range of custom setup & tool preferences and in the light of saving one a bit more money we’ve opted to focus directly on our Router’s Components, Performance and Customer Support.

HOLE DRILLING: You will be required to source a drill to make holes into your Wasteboard for fastener installation. You will be required to source a 0.270 drill bit and a 3/4″ diameter Single Flute 82° Degree Countersink Angle drill bit.

FASTENERS: You will be required to source your choice of bolt & nut fasteners for your Wasteboard. Slotted holes will guide the fastening process. You will be required to fasten your waste board with metal fasteners for the table’s perimeter all around and Nylon fasteners for the inner areas. The Screw and Nuts for this are Nylon Flat head 82° Degree Countersink Angle at a 1/4″ x 20 x 2″ size.

DISPLAY ACCESSORIES: You will be required to source your choice of Computer Monitor, Keyboard & Mouse. The Mini PC included in your order will have HDMI, VGA and USB ports.

DUST REMOVAL: You will be required to source a Dust Collector or Dust Removal System with a clamping industry standard dust port connector hose.Why is the Dust Collector Hose not included? Many of our customers have a wide range of custom setup & tool preferences and in the light of saving one a bit more money we’ve opted to focus directly on our Router’s Components, Performance and Customer Support.

ROUTER BITS: You will be required to source premium woodworking router bits or tool bits that apply to the material you choose.

SPINDLE TOOLS: You will be required to source two crescent wrenches for changing out your router bits. (Wrench Sizes: 13/16″ and 1 – 3/16″)

CNC CLAMPS: You will be required to source router table clamps to fasten your stock to the working area for safety purposes.

MATERIALS TO CUT

TAB SECTION 4: Your craft projects can start with cutting 2D/3D designs and objects out of any of these material stock. *It is recommended one sources a test sample piece to cut on the Router Table before purchasing full-sized material stock. It is also recommended your workshop and employees have all the required safety requirements, PPE, equipment and measures in place when working with that choice of stock material.

SO MANY CRAFTY IDEAS!

TAB SECTION 5: Your New STV®R Router Table can be the begin of a FRESH START in an industry you’re passionate about. Below are some crafty ideas you may like to venture into.

CABINETRY, TABLES & FURNITURE

LETTERING & ENGRAVED PLAQUES

BIRD FEEDERS & GARDEN

SKATEBOARD TRIMS & DRILL

SNOWBOARD TRIMS & DRILL

HOME DECOR & FIRE PLACE MANTLES

ENGRAVED COASTERS

ENTRYWAY SIGNS & DOORMATS

CUSTOM SHELVING & COUNTERTOPS

MAIL SORTERS & ROOM DIVIDERS

CHAIR, BENCH & STEP STOOLS

MUG, COAT,
SHOES & WINE RACKS

KEYRING & DOG LEASH HOLDER

WALKING STICKS & CANES

WOOD DECK, SAUNA & PLANTERS

WOODEN GAMES, TOYS & PUZZLES

WOOD FRAMES & BORDERS

 KITCHEN CUTTING BOARDS & PIZZA PADDLES

SERVING TRAYS
& CHOPPING BOARDS

DISPLAY FIXTURES, MOLDS & PROTOTYPES

CHEESE & CHARCUTERIE BOARDS

WOOD GUITARS & INSTRUMENTS

WOODEN BANISTERS & LADDERS

COMMERCIAL & COMMEMORATIVE SIGNS

NEED A MODULAR FRAME INSTEAD?

If you prefer a more modular customizing base frame, our modular router tables will suite you better. Base modular models open the imagination to additional custom accessories and tool setup. To accommodate a wide variety of industrial preferences we offer modular table sizes in 4×4, 5×5, 4×8 & 5×10.

STV®CNC AUTOMATION SOLUTIONS. ALL RIGHTS RESERVED. THE STV®R INDUSTRIAL CNC ROUTER TABLE R-SERIES IS DESIGNED, HANDCRAFTED & MANUFACTURED IN LAS VEGAS, NV, USA.    |    MADE IN THE USA. 🇺🇸

FINANCING

SECTIONS_financing

Financing: Assistance via First Citizens Bank or available lenders

Five Reasons to Finance your next purchase.

  • Get your equipment when you need it.

    With financing, you can get the equipment you need now — and avoid making a hefty payment all at once.

  • Know what you’re paying each month.​

    You'll have a predictable monthly payment, which can help you plan for the future and budget for your other business needs.

  • Financing is simple — and quick.​

    With our simple online application that you can complete in minutes, you could get quick turnarounds on approvals.

  • Keep your cash reserves available.​

    Paying for your equipment over time means you can avoid tying up your cash all at once.

  • Reap potential tax benefits.​

    Financed equipment could be deducted as an operating expense in the period in which it’s paid and put into use — and that could reduce your overall cost. Payments are also treated as expenses on the income sheet, so there’s no need to worry about depreciation.

© 2023 First-Citizens Bank & Trust Company. All rights reserved. First Citizens Bank is a registered trademark of First Citizens BancShares, Inc. Not all applicants will qualify for financing. All finance programs and rates are subject to final approval by First-Citizens Bank & Trust Company, and are subject to change at any time without notice. Speed and performance are subject to applicant’s local connectivity and other factors outside First-Citizens Bank & Trust Company’s control. Supporting financial documentation may be required for any transaction with First-Citizens Bank & Trust Company. If a transaction is over $250k, then supporting financial documentation will be required. This is not intended to offer any tax advice or other advice. Applicants should consult with their tax advisors concerning their specific tax situations. Member FDIC. MM#12935

Financial Assistance for your STV®CNC Order is available through First Citizens Bank or through an assorted list of top financing lenders. Quicken Equipment Ownership with flexible terms that work best for your operation.

STV®CNC offers financial assisting options through First Citizens Bank or through an assorted list of available top lenders who offer different tiers of financing. Finance essential CNC equipment, Plasma Tables or Router Tables for your business. Expand your financing options. Get the resources you need to make your business flourish with an exceptional financial backing with options that work best for you.  With experience working with small businesses we know what it takes to start, expand and have the correct measures that will support your daily operations along with any flexible small business loans and financing solutions to meet your needs.

Your journey starts here at STV®CNC Automation Solutions

General Information about our In-house built CNC Router tables.

STV®CNC manufacturers affordable, top-quality cnc router tables in the market.

  • Router tables with high-end machine features in a small frame.
  • Attach your Router Unit to cut various materials.
  • CNC router tables that are perfect for businesses of all sizes.

When you need the best CNC router cutting table for your company, then look no further than the STV®R4 PRO CNC Router Table. This automated router table can handle a wide range of material types and thicknesses. All of our CNC router tables feature high-end machinery that helps reduce the time spent while creating increased consistency. This industrial level CNC PRO Router Table is perfect for companies both big and small, especially those looking for their first router table. If you need a rugged and reliable automated router table, then the STV®R4 PRO CNC Router Table is perfect for you. Get your CNC router table online today.

  • Uses Windows/Linux OS interface
  • Several advanced attachments included
  • Selectable input power

We have applied the technologies of high end, industrial level CNC Router Tables to the entry level market. The STV®R PRO Router Table Series incorporates high-end machine features and capabilities, in a smaller package. Using a high accuracy Gear Reduction System for speed, control and smooth operation and combining it with ground linear bearings and guide rails results in consistency and speed that is unrivaled in the industry. Additionally, our tables are built tough and designed to easily handle your crafty, CNC projects. Made in the USA.
