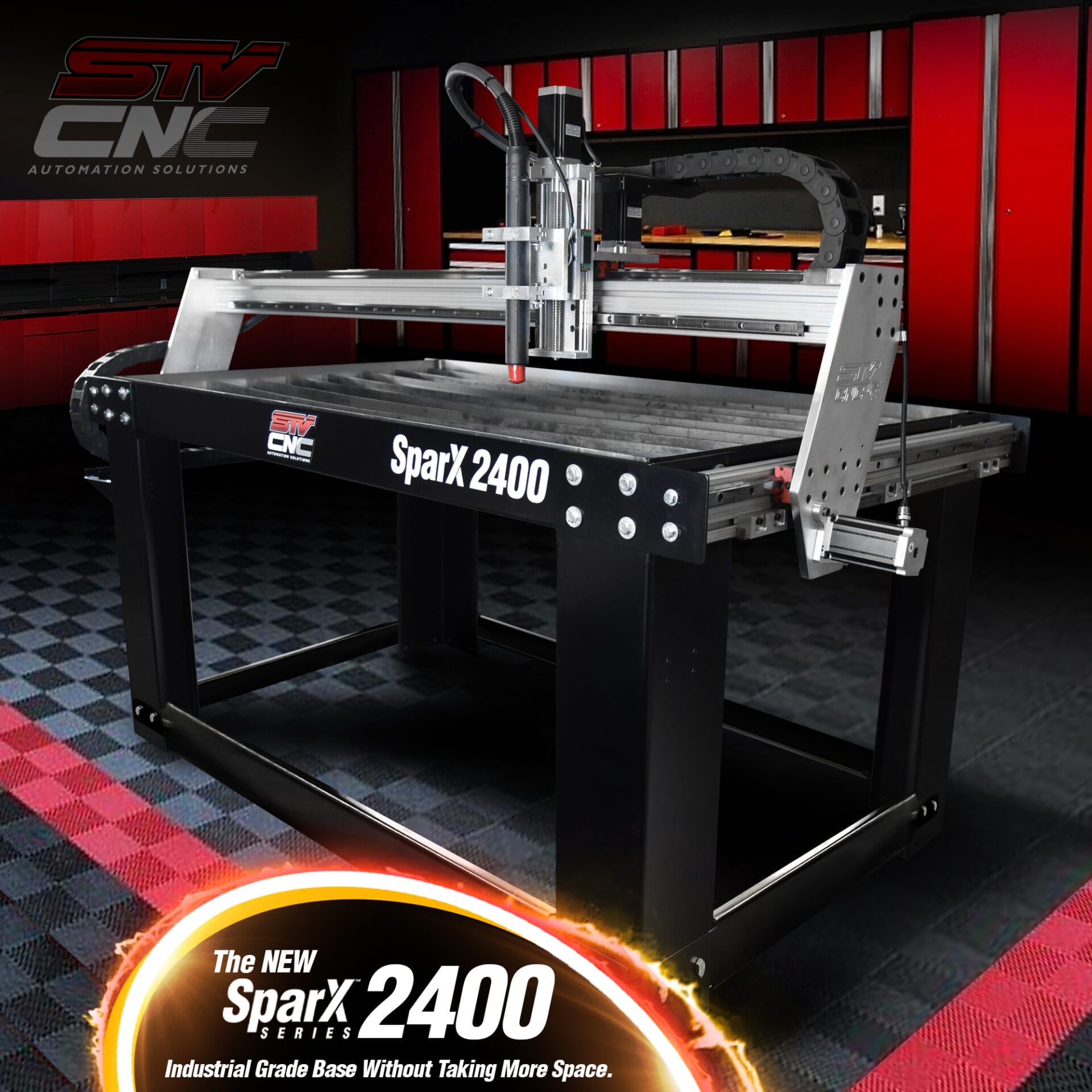

STV®CNC SparX™ 2400 Plasma Table

$4,999.00



2 × 4 Modular Plasma Table. The modular STVCNC SparX™ 2400 is a robust Plasma Cutting Table that offers faster, cleaner cuts with a precise motion system and a sturdy, heavy-duty build able to support up to a 1” inch steel plate. Our product line consists of prime-selected components and backed by a long list of great features, exceptional lifetime support all within an affordable price.  Important: Plasma Cutter sold separately.

 VIEW INCLUDED FEATURES       VIDEO        TRY OUR X-BUILDER

Add an STV®CNC Upgrade

Add an STV®CNC Upgrade

Add a Hypertherm® Plasma Cutting System *

Add a Hypertherm® Plasma Cutting System

➤ IMPORTANT: Hypertherm® is experiencing unprecedented lead times for all plasma systems. Please contact us for current lead times.

Select one of the following: VIEW COMPARISON PDF

Product price
Additional options total:
Order total:
Gallery Images of STVCNC Plasma Table

Gallery: Assorted images of the Modular SparX™2400

Features of the STVCNC Plasma Table

Features: Your SparX™2400 plasma table base model comes with:

MODULAR FRAME HOLDS UP TO 1.5” INCH PLATE

stvcnc_program

FULL SOFTWARE PACKAGE AND LICENSES INCLUDED

USER-FRIENDLY ASSEMBLY INSTRUCTION MANUAL

stvcnc_torchheightcontrol

(THC) AUTOMATIC TORCH HEIGHT CONTROL

STEPPER MOTOR SYSTEM WITH MOUNTS

stvcnc_wiring

AUTOMATION WIRING, HANDCRAFTED & LABELED

USB CONNECTIVITY

TWO INCH WATER PAN STEEL SLATS

stvcnc_controlbox

FLOATING CONTROL BOX    (E-STOP INCLUDED)

ADVANCED CABLE MANAGEMENT

CUT AND AUTOMATE REPEATING TASKS

stvcnc_watertable

WATER TABLE, SUPPORT BEAMS & LEG BRACE SUPPORTS

stvcnc_linearguides

LINEAR GUIDE RAILS & CARRIAGES (X-AXIS)

ASSEMBLED GANTRY & SIDE PLATES  (Y-AXIS)

stvcnc_zaxis

 Z-AXIS BILLET PRECISION BALL LEAD SCREW (Z-AXIS)

MAGNETIC BREAKAWAY

LEG BRACE SUPPORTS

1 YEAR WARRANTY (ADDITIONAL YEARS AVAILABLE)

Upgrades for the STVCNC Plasma Table

Upgrades: Customize your table with Premium Add-ons.

Plasma Quench (Anti-Rust Solution)

Recommended if you would like to decrease production dust/debris, preserve your water pans & avoid any oxidation. The Blue Anti-Rust Solution will be sent to you in a 5 Gallon Bucket with an Instruction Label to follow upon use. For a STV®CNC Plasma Quench Guide,  click here: Plasma Quench User’s Guide

STVCNC Automatic Homing Kit

STV®CNC Automatic Homing Kit

On a Daily use, Proximity Sensors make “Homing the Table” fast, easy and worry-free. To increase time efficiency we’ve produced an in-house STV®CNC Automatic Homing Kit. Two Proximity Sensors Included with Cabling, brackets, fasteners, control box connectors and a manual to automatically set your table to X=0, Y=0.

Windows 10 Laptop

Windows Laptop with Software

New Windows 10 Laptop with Pre-installed Controller program. This Brand New Windows 10 Laptop is dedicated for “function” and will arrive with Installed Software, Setup and USB Connectivity. Licenses will be included in this add-on feature. Laptop Make and Model may differ upon availability.

STVCNC Leveling Feet

Leveling Feet (Skid-Resistant)

Includes Inner Support Brackets, Fasteners and Swivel Screw base. For any Floor plan leveling issues, our skid-resistant leveling feet will come in handy on keeping a leveled table on your production grounds. Attaches to your STV®CNC Frame legs; raise or drop within a 2” inch range to your desired height.

STVCNC Gear Reduction Kit

STV®CNC Gear Reduction Kit

The STV®CNC Gear Reduction System are 3 (X, Y & Z) separate mounted stepper motors with belt-driven gears to increase precision & gliding fluidity. Handcrafted Cable Wiring fastens into your Plasma Table. The Kit is designed, manufactured, assembled & tested in-house.  Click here for Gear Reduction Chart.

Hypertherm Cutting System add-on for the STVCNC Plasma Table

Hypertherm® Plasma Systems: Shaping Possibility.

Hypertherm 45XP Plasma Cutting System

Hypertherm® Powermax 45XP

2499 price

1/2″ inch pierce

VIEW PDF

Hypertherm 65 Plasma Cutting System

Hypertherm® Powermax 65

2499 blk

5/8″ inch pierce

VIEW PDF

Hypertherm 85 Plasma Cutting System

Hypertherm® Powermax 85

4499 price

3/4″ inch pierce

VIEW PDF

Hypertherm 105 Plasma Cutting System

Hypertherm® Powermax 105

5999 price

7/8″ inch pierce

VIEW PDF

Hypertherm 125 Plasma Cutting System

Hypertherm® Powermax 125

7699 price

1″ inch pierce

VIEW PDF

Adapters for the STVCNC Plasma Table

Adapters: Options if you currently own a Hypertherm® system.

STVCNC CPC Interface Cable

STV®CNC CPC Interface Cable

Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a CPC cable. If you purchase a Plasma Table with us & decide to use your personal plasma system or decide to purchase one elsewhere, you will need to purchase this item to connect your plasma system to the STV®CNC Control Box.

Hypertherm® Machine Torch

Hypertherm® Mechanized Torch (25ft.)

Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a Mechanized Torch. This Hypertherm Item is 25 feet in length. Duramax full-length machine torches work with a wide variety of CNC cutting tables, track cutters, and pipe-cutters.

Hypertherm® 25ft Hand Torch

Hypertherm® Hand Torch (25ft.)

Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a Hand Torch. The 25 foot Duramax® 75° hand torch is well suited for a variety of applications such as gouging, fine feature cutting, extended reach cutting, and flush cutting. The ergonomic design of the 75° torch is perfect for normal cutting.

Important Information for the STVCNC Plasma Table

Important: Things to keep in mind when placing your purchase.

Get some idea on a few things to consider when purchasing a new STVCNC plasma table and what you need to know and have on-site.

View the 20-Step pipeline guide on how our multiple departments come together to produce your customized CNC Table order.

Table Specifications for the STVCNC Plasma Table

Table Specs: Database of Standard Base Model Information & Sizing for Geeks

Grade Marker Plasma Table Specifications
Cutting Envelope Dimensions
2’(W) x 4’(L). XYZ Breakdown: X = 24”, Y = 48”, Z-Axis travel = 6” Maximum
Linear System
All Axis On Precision Ball Bearing Carriage Guide Rails
Mechanical Drive System
X-Axis & Y-Axis Rack & Pinion, Made In USA
Mechanical Drive System
Z-Axis – Full CNC’d Billet Precision Ball Lead-Screw
System Interface
Windows OS
Motion Accuracy
0.002” per 12" inches
Step Resolution
(+) or (-) 0.005” inches
Maximum Cut Speed
800" inches per minute
Torch Height Control
Automatic
Table Surface
Waterpans and inserted, replaceable 2" inch steel slats
Input Power
110V for the plasma table and 220V for your plasma cutting system.
System Ratio
1:1 Direct Drive Gear Ratio
Precision Margin of Error
Every 10ft. of Travel = Off by 0.005" to 0.008" inches
Should I add a Gear Reduction Kit?
SECTIONS_financing

Financing: Assistance via CIT Financing or available lenders

stvcnc_financing_012

Get it right now

When a new equipment is crucial for your business, waiting for the funds to be available isn’t always an option. With financing, avoid a hefty upfront payment and get your equipment now.

stvcnc_financing_022

Know what you're paying each month

Financing allows you to plan and budget with a predictable monthly payment.

stvcnc_financing_032

Say No to the Hassle

Getting a loan can be a long, complicated process with some institutions. With financing through CIT, you can rest assured the process will be simple.

stvcnc_financing_042

Keep your cash reserves available

Paying for your equipment over time through financing means there’s no lump sum required for your purchase. You can keep your cash reserves clear for other expenses or a rainy day.

stvcnc_financing_052

Take Advantage of Competitive Rates

Top rates make financing a cost-effective solution.

stvcnc_financing_062

Reap some serious Tax Benefits

Financed equipment can be deducted as an operating expense in the period in which they’re paid, reducing the overall cost. Payments are also treated as expenses on the income sheet, so there’s no need to worry about depreciation.

General Information about our In-house built CNC Plasma tables.

The toughest plasma tables on the market.

  • Plasma tables with high-end machine features in a small frame.
  • Automated plasma cutters that can handle metals of various widths.
  • CNC plasma table that’s perfect for businesses of all sizes.

When you need the best plasma cutting table for your company, then look no further than the STV®CNC SparX™ 4400 Plasma Table. This automated plasma table can handle all sizes of metal, from a half-inch thick and beyond. All of our CNC plasma tables feature high-end machinery that helps reduce the time spent creating while increasing consistency. This industrial level plasma cutter is perfect for companies both big and small, especially those looking for their first plasma table. If you need a rugged and reliable automated plasma cutter, then the STV CNC SparX 4400 Plasma Table is perfect for you. Get your CNC plasma table online today.

  • Uses Windows OS interface
  • Several advanced attachments included
  • Dry or water pan options available
  • Selectable input power



We have applied the technologies of high end, industrial level CNC plasma tables to the entry level market. The STV®CNC SparX™ Plasma Table Series incorporates high end machine features and capabilities, in a smaller package. Using our high accuracy stepper motors for speed, control and smooth operation and combining it with ground linear bearings and guide rails results in consistency and speed that is unrivaled in the industry. Additionally, our tables are built tough and designed to easily handle half-inch steel plates (but they can handle more). Made in the USA.



  The toughest plasma tables on the market.
  • Plasma tables with high-end machine features in a small frame.
  • Automated plasma cutters that can handle metals of various widths.
  • CNC plasma table that’s perfect for businesses of all sizes.
When you need the best plasma cutting table for your startup, but have limited space at your location, then look no further than the STV®CNC SparX™ 2400 Plasma Table. This automated plasma table can handle all sizes of metal, up to an inch thick. All of our CNC plasma tables feature high-end machinery that helps reduce the time spent creating while increasing consistency. This industrial level plasma cutter is perfect for companies both big and small, especially those looking for their first plasma table. If you need a rugged and reliable automated plasma cutter, then the STV CNC SparX™ 2400 Plasma Table is perfect for you. Get your CNC plasma table online today.
  • Uses Windows OS interface
  • Several advanced attachments included
  • Dry or water pan options available
  • Selectable input power

We have applied the technologies of high end, industrial level CNC plasma tables to the entry level market. The STV®CNC SparX™ Plasma Table Series incorporates high end machine features and capabilities, in a smaller package. Using our high accuracy stepper motors for speed, control and smooth operation and combining it with ground linear bearings and guide rails results in consistency and speed that is unrivaled in the industry. Additionally, our tables are built tough and designed to easily handle an inch thick steel plate. Made in the USA.

INCLUDED FEATURES

  • MODULAR FRAME HOLDS UP TO 1″ INCH PLATE
  • FULL SOFTWARE PACKAGE AND LICENSES INCLUDED
  • USER-FRIENDLY ASSEMBLY INSTRUCTION MANUAL
  • (THC) AUTOMATIC TORCH HEIGHT CONTROL
  • FULLY ASSEMBLED GANTRY
  • AUTOMATION WIRING (HANDCRAFTED & LABELED)
  • WATER TABLE​ & SUPPORT BEAMS INCLUDED
  • WATER PAN SLATS
  • LEG BRACE SUPPORTS
  • CONTROLLER (E-STOP INCLUDED)
  • ADVANCED CABLE MANAGEMENT
  • AUTOMATE REPEATING TASKS​
  • FULLY ASSEMBLED LINEAR GUIDE RAILS & DUAL CARRIAGES
  • Z-AXIS BILLET PRECISION BALL LEAD SCREW
  • STEPPER MOTOR SYSTEM
  • USB CONNECTIVITY​
  • 1 YEAR WARRANTY
  • LIFETIME SUPPORT INCLUDED!
Purchase your Plasma Table for as low as $195 a month!

TABLE SPECIFICATIONS

CUTTING ENVELOPE DIMENSIONS:  2’ x 4’, X = 24” X Y=48”, Z-AXIS TRAVEL = 6” MAXIMUM LINEAR SYSTEM: ALL AXIS ON PRECISION BALL BEARING CARRIAGE GUIDE RAILS MECHANICAL DRIVE SYSTEM: X-AXIS & Y-AXIS RACK AND PINION, MADE IN USA MECHANICAL DRIVE SYSTEM: Z-AXIS – FULL CNC’D BILLET PRECISION BALL LEAD-SCREW SYSTEM INTERFACE: WINDOWS OS MOTION ACCURACY: .002” PER 12 INCHES STEP RESOLUTION: (+) or (-) 0.005” MAXIMUM CUT SPEED: 800 INCHES A MINUTE TORCH HEIGHT CONTROL: AUTOMATIC TABLE SURFACE: REPLACEABLE STEEL SLATS . DRY OR WATER PAN OPTION AVAILABLE. INPUT POWER: 110/220V  VAC ( SELECTABLE )
Z-axis head on one of our CNC plasma tablesAUTOMATIC TORCH HEIGHT CONTROL (THC)​ A high performance torch height control (THC) is essential to getting the most out of your CNC plasma table. Our THC utilizes advanced processor technology, the THC can be set to respond to cutting conditions that rival products costing thousands of dollars more has the control, accuracy, adjustable features as our THC.​   Water pan slats on one of our CNC plasma cutter tablesWATER TABLE​ A water table drastically reduces dust and helps prevent the metal from warping due to high heat.  Most plasma table companies expect you to pay extra for such a feature but STV®CNC includes one as a part of our standard package on every table.   Cable track and automation wiring on one of our automated plasma tablesADVANCED CABLE MANAGEMENT Our cable management system, which neatly contains and secures all of the cables and links, give the plasma table a clean aesthetic look while eliminating the need for overhead arms or loose wiring. This in turn gives you a larger, unobstructed loading area and increases your tables functionality.   Leg Brace SupportsLEG BRACE SUPPORTS INCLUDED!  Designed for Heavy Industrial Operations. Reinforces Structural Strength and Reduces Vibration. Recommended if you should decide to greatly increase the weight of your production sheets. The Supports are designed, manufactured, professionally painted in-house & come with the necessary fasters to lock them in.   USB CONNECTIVITY Gone are the days of needing to track down and repair old computers that had a vital parallel port. Our plasma tables all come with USB connectivity and can easily work with any Windows operating system.

UPGRADES AND ADD-ONS


Upgrades and Addons - Plasma QuenchADD-ON: PLASMA QUENCH (ANTI-RUST SOLUTION)​
Recommended if you would like to decrease production dust/debris, preserve your water pans & avoid any oxidation. The Blue Anti-Rust Solution will be sent to you in a 5 Gallon Bucket with an Instruction Label to follow upon use. For a STV®CNC Plasma Quench Guide, click here: Plasma Quench User’s Guide
Windows 10 LaptopADD-ON: WINDOWS 10 LAPTOP WITH CONTROLLER SOFTWARE​
New Windows 10 Laptop with Pre-installed Controller program. This Brand New Windows 10 Laptop is dedicated for “function” and will arrive with Installed Software, Setup and USB Connectivity. Licenses will be included in this add-on feature. Laptop Make and Model may differ upon availability.
Skid Resistant Leveling FeetADD-ON: LEVELING FEET (SKID RESISTANT)​
Includes Inner Support Brackets, Fasteners and Swivel Screw base. For any Floor plan leveling issues, our skid-resistant leveling feet will come in handy on keeping a leveled table on your production grounds. Attaches to your STV®CNC Frame legs; raise or drop within a 2″ inch range to your desired height.
STVCNC Homing KitADD-ON: AUTOMATIC HOMING KIT
On a Daily use, Proximity Sensors make “Homing the Table” fast, easy and worry-free. To increase time efficiency we’ve produced an in-house STV®CNC Automatic Homing Kit. Two Proximity Sensors Included with Cabling, brackets, fasteners, control box connectors and a manual to automatically set your table to X=0, Y=0.
STVCNC Magnetic BreakawayADD-ON: MAGNETIC BREAKAWAY
The STV®CNC Magnetic Breakaway Kit prevents any unforeseen discarded production pieces from interrupting the path of your moving Torch, possible damage to your Z-Axis, Gantry calibration & the ability to continue your cut afterwards. The Kit is designed, manufactured, assembled & tested in-house.
CPC Interface CableADD-ON: CPC INTERFACE CABLE​
Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a CPC cable. If you purchase a Plasma Table with us & decide to use your personal plasma system or decide to purchase one elsewhere, you will need to purchase this item to connect your plasma system to the STV®CNC Control Box.
STVCNC Gear ReductionADD-ON: GEAR REDUCTION
The STV®CNC Gear Reduction System are 3 (X, Y & Z) separate mounted stepper motors with belt-driven gears to increase precision & gliding fluidity. Handcrafted Cable Wiring fastens into your Plasma Table. The Kit is designed, manufactured, assembled & tested in-house. Click here for Gear Reduction Chart.

WHAT HAPPENS AFTER PURCHASE?

20-Step Pipeline Guide of  “What to Expect” after placing your order. Our “What to Expect” PDF Guide covers all the following steps:
  • Customized Orders
  • Your Site Preparation
  • FAQ
  • Banking & Financing
  • Shipping Verification
  • Confirmation
  • Processing & Production Time
  • In-House Production Breakdown
  • Shipping Time, Transit & Delivery
  • STVCNC Training and Community
The “What to Expect” PDF Guide will improve your STVCNC Purchase Experience. Click here to view
Weight 8000 oz
Dimensions 60 × 34 × 34 in
