STV®CNC Compare America's Top Leading Tables

We are proud to say that every STV® Table manufactured in-house in our 50,000 sqft. Las Vegas Headquarters has the outline of true craftsmanship with an integrated list of 3 key items: Fulfilled Purpose & Vision, Highest Degree of Machined Quality and a sustained allegiance to customer support. At the bottom of this page you will also be able to compare all tables, cutting envelope, features, pricing, add-ons, shipping & additional details.


2 x 4	$4,999 ➜	Not Applicable	Not Applicable
4 x 4	$5,499 ➜	$7,499 ➜	$14,499 ➜
5 x 5	$5,999 ➜	$7,999 ➜	$14,999 ➜
4 x 8	$6,799 ➜	$8,999 ➜	$15,999 ➜
5 x 10	$7,499 ➜	$9,999 ➜	$16,999 ➜
6 x 12	Not Applicable	$12,999 ➜	$19,999 ➜
SHIPPING	Nationwide $900 - $1200	Call 1-888-701-7101 for Freight Cost	Call 1-888-701-7101 for Freight Cost
SETUP	Assembly Required (5 hrs)	Ships Flatbed Fully Built	Ships Flatbed Fully Built
TECH SUPPORT	Golden Prestige℠ Tech Support: Full Support via Ticket, Email, Phone & Remote Assistance	Golden Prestige℠ Tech Support: Full Support via Ticket, Email, Phone & Remote Assistance	Signature White Glove℠ Tech Support: Click here to read more

— Base	Open Bolt-on Modular	Open Welded 3” Tube	Enclosed Welded 4” Tube
— Leg Support	Bolted Leg Brace Supports	Welded Tubular Supports	Welded Tubular Supports
— Water pans	Modular & Bolted Pans (Requires WP Silicone)	Long, Welded Uni-Pan™	Long, Welded Uni-Pan™
— Slats	Interchangeable 1.5" flatbar slats	Interchangeable 1.5" flatbar slats	Interchangeable 1.5" flatbar slats
— Rollerballs™	Not Applicable	*Add-on: $100 Transfer Bearings	Includes Transfer bearings
— Leveling feet	*Add-on: $150 - $300	Includes: Heavy-Duty Leveling feet	Includes: Heavy-Duty Leveling feet

— Gantry Type	Extruded Aluminum Gantry	Extruded Aluminum Gantry	Machined Metal Gantry
— Clearance	6" inches	5.75" inches	6.75" inches
— Z-Axis Travel	5.5" inches	5.5" inches	5.5" inches
— Gantry Assembly	Linear Guide Assembly with Standard Rack & Pinion	Linear Guide Assembly with Standard Rack & Pinion	Hardened, Heavy-Duty Linear Guide Assembly with Helical Rack & Pinion
— Table Assembly	Linear Guide Assembly with Standard Rack & Pinion	Linear Guide Assembly with Standard Rack & Pinion	Hardened, Heavy-Duty Linear Guide Assembly with Helical Rack & Pinion

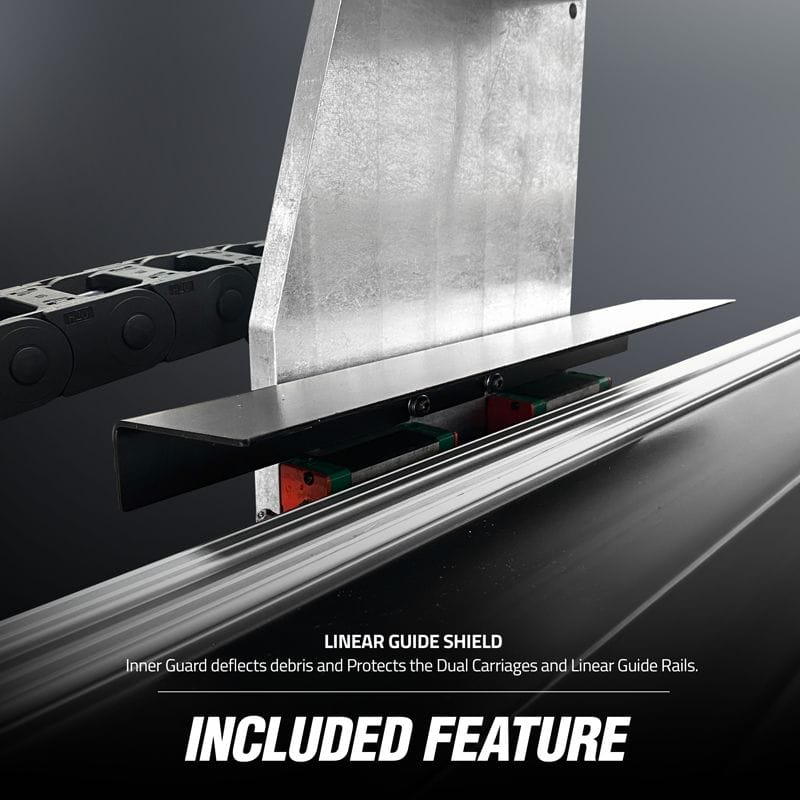

— Shields	Not Applicable	Gantry Carriage Shields	Includes: FlatTop Full Length Shield
— Homing	Automatic Homing Kit $200	Automatic Homing Kit (3 Sensors)	3 Sensor Automatic Homing Kit, Toggle via Software & 4th Sensor for Gantry Alignment

— Cover	Open Front & Rear	Open Front & Rear	Front Cover & Rear Housing
— Z-Axis	Billet Precision Ball Lead Screw	Billet Precision Ball Lead Screw	Billet Precision Ball Lead Screw
— THC	Includes Torch Height Control	Includes Torch Height Control	Includes Torch Height Control
— Torch Mount	Double Bracket 4-BOLT System	Double Bracket 4-BOLT System	Slim Knuckle Torch 6-BOLT Holster
— Ohmic Sensor	Includes: Ohmic Sensor	Includes: Ohmic Sensor	Includes: Ohmic Sensor with Adjustable Ohmic Sensitivity via Software

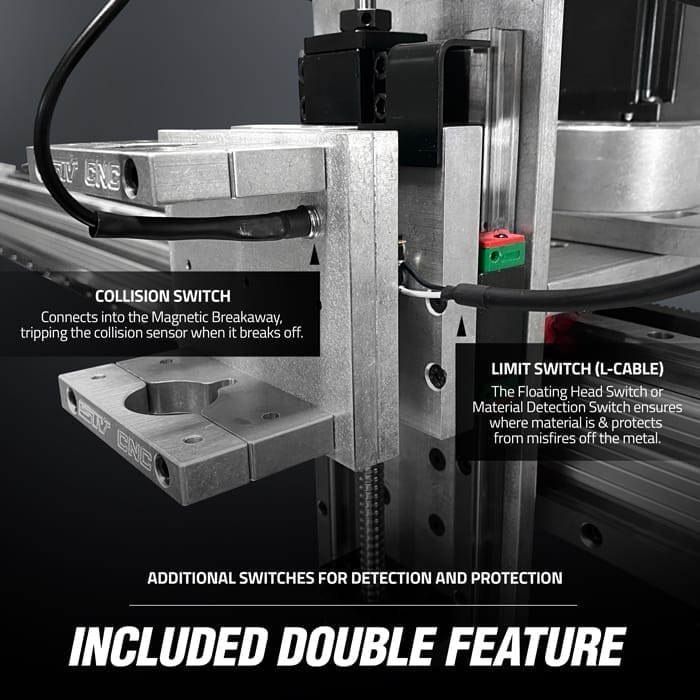

— Limit Switch	Limit Switch (Material Detection)	Limit Switch (Material Detection)	Includes: Limit Switch (Material Detection)
— Collision Switch	Collision Switch (Sensor)	Collision Switch (Sensor)	Collision Switch (Sensor)
— Magnetic Breakaway	Magnetic Breakaway	Magnetic Breakaway	Slim Magnetic Breakaway & Cable Catch
— Laser Guide	Not Applicable	Not Applicable	Mounted Laser Guide & Software Toggle
— Multi-Angle Beveler (+45° to -45°)	Not Applicable	Not Applicable	Add-on: Multi-Angle Beveler $299

— Motor System	4 Stepper Motors with 1:1 Ratio Direct Drive	3 Stepper Motors with 3:1 Ratio Gear Reduction & a Z-Axis Stepper Positioner Motor	3 Servo Motors - 5:1 Ratio X & Y Axis & a Z-Axis Stepper Positioner Motor
— Gear Reduction System	Add-on: $900 3:1 Gear Reduction System	3 Stepper Motors with 3:1 Ratio Gear Reduction & a Z-Axis Stepper Positioner Motor	5:1 Ratio Planetary Gear Reduction System
— Motor Enclosures	Open & Accessible - No Housing	Open & Accessible - No Housing	X, Y & Z Housing Enclosures
— Advanced Cable Mgmt	Upper Gantry & Lower Table Side Cable Track	Upper Gantry & Lower Table Side Cable Track	Upper Gantry & Lower Table Side Cable Track
— Automation Wiring	Durable Automation Wiring	Durable Automation Wiring	Encoder Communication Wiring
— Motion Accuracy	0.005” per 12" inches	0.002” per 12" inches	0.001” per 12" inches
— Step Resolution	(+) or (-) 0.0005” inches	(+) or (-) 0.0005” inches	(+) or (-) 0.00008” inches
— Frequency Pulse Generator	MyPlasm CNC CPU Frequency: 350 KHz	MyPlasm CNC CPU Frequency: 350 KHz	Optimum™ CNC: FGPA Frequency: 3 MHz
— Precision Margin of Error (10ft Travelled)	10 ft. = Off by 0.05"- 0.08"	10 ft. = Off by 0.02"- 0.05"	TBA

— Control Box	Floating Control box & E-Stop	Attached Control box & E-Stop	Attached Control box E-Stop located at Table Front
— Input Power	Table: 110VAC; Cutter: 220-600VAC	Table: 110VAC; Cutter: 220-600VAC	Table: 110VAC; Cutter: 220-600VAC
— Controller Connectivity	USB ( 6 ft. Cable Included )	USB ( 6 ft. Cable Included )	Ethernet ( 15 ft. Cable Included )
— Control Software	Proma MyPlasm CNC / Optimum™ CNC	Proma MyPlasm CNC / Optimum™ CNC	Includes Optimum™ CNC & Mini PC
— CAD Software	MyMiniCAD, Inkscape & QCAD	MyMiniCAD, Inkscape & QCAD	Optimum™ CAD/CAM, Inkscape and QCAD
— Cut Files	1000+ DXF Files	1000+ DXF Files	1000+ DXF Files
— Shape Library	Not Applicable	Not Applicable	Library of 80+ Editable Shape Templates
— User Interface	MyPlasm: Beginner & Minimal	MyPlasm: Beginner & Minimal	Optimum™ Intermediate & Advanced
— Computer	Software Only, Windows Os Computer Required	Software Only, Windows Os Computer Required	Includes Linux OS Mini PC & Software
— Prone to Windows Updates	Yes	Yes	No; Linux Os Mini PC
— File types	.dxf, .plt, .tap, .2d, .hpgl	.dxf, .plt, .tap, .2d, .hpgl	.dxf, .gcode, .nc, .dnc, .iso, .tap, .txt, .NC, .CNC

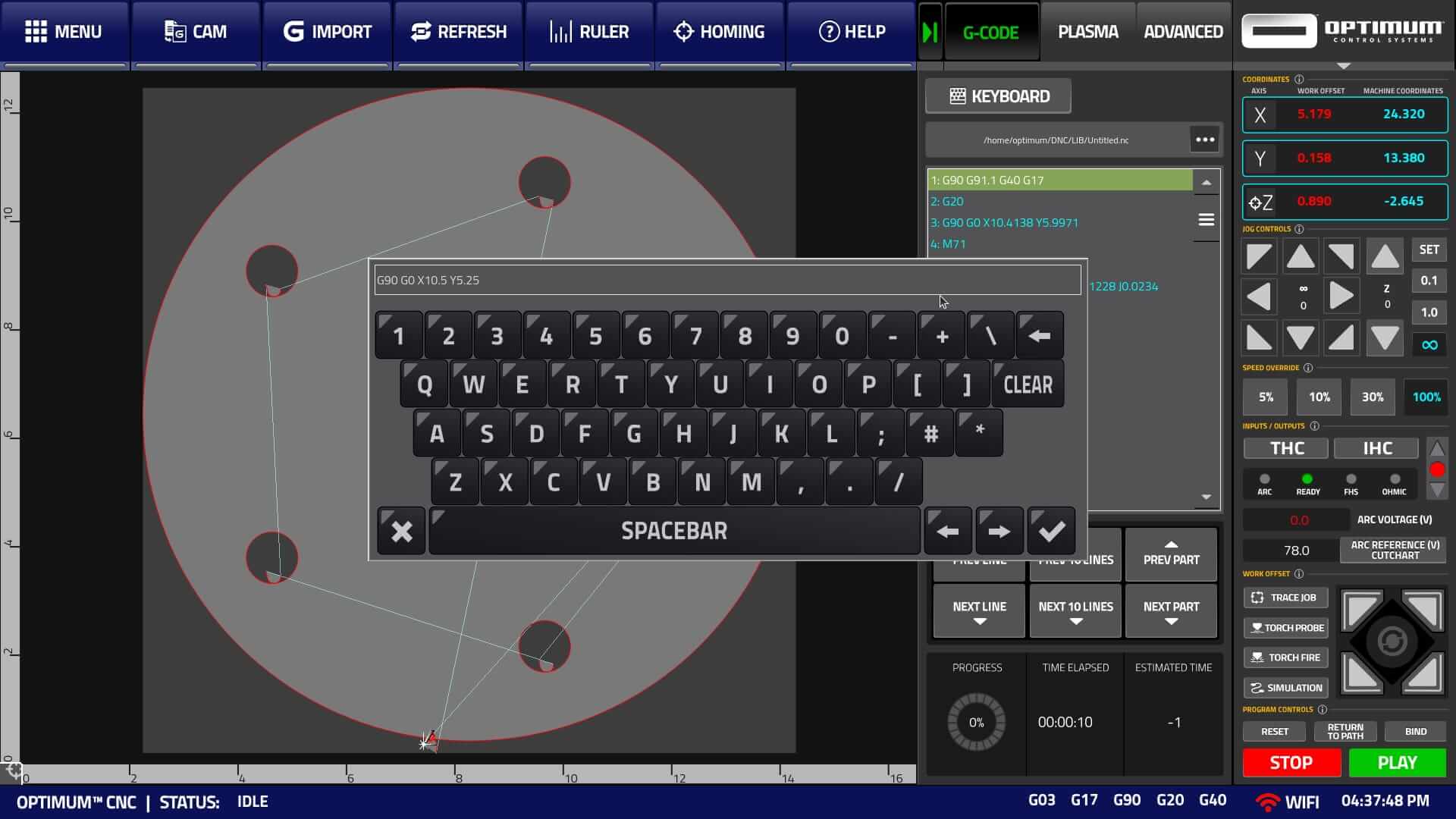

— NC Viewer & MDI	Not Applicable	Not Applicable	Yes; Import & View G-Code + M.D.I. Keyboard
— Tutorials	12 Tutorials, 16 Design Videos	12 Tutorials, 16 Design Videos	40 Tutorial Videos
— Software YouTube	Click here for Proma YouTube Channel	Click here for Optimum™ YouTube Channel	Click here for Optimum™ YouTube Channel
