Upgrades: Customize your table with Premium Add-ons.
Plasma Quench (Anti-Rust Solution)
Recommended if you would like to decrease production dust/debris, preserve your water pans & avoid any oxidation. The Blue Anti-Rust Solution will be sent to you in a 5 Gallon Bucket with an Instruction Label to follow upon use. For a STV®CNC Plasma Quench Guide, click here: Plasma Quench User’s Guide
STV®CNC Magnetic Breakaway
The STV®CNC Magnetic Breakaway Kit prevents any unforeseen discarded production pieces from interrupting the path of your moving Torch, possible damage to your Z-Axis, Gantry calibration & the ability to continue your cut afterwards. The Kit is designed, manufactured, assembled & tested in-house.
Windows Laptop with Software
New Windows 10 Laptop with Pre-installed Controller program. This Brand New Windows 10 Laptop is dedicated for “function” and will arrive with Installed Software, Setup and USB Connectivity. Licenses will be included in this add-on feature. Laptop Make and Model may differ upon availability.
Hypertherm® Plasma Systems: Shaping Possibility.
Adapters: Options if you currently own a plasma system.
STV®CNC CPC Interface Cable
Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a CPC cable. If you purchase a Plasma Table with us & decide to use your personal plasma system or decide to purchase one elsewhere, you will need to purchase this item to connect your plasma system to the STV®CNC Control Box.
Hypertherm® Mechanized Torch (25ft.)
Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a Mechanized Torch. This Hypertherm Item is 25 feet in length. Duramax full-length machine torches work with a wide variety of CNC cutting tables, track cutters, and pipe-cutters.
Hypertherm® Hand Torch (25ft.)
Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a Hand Torch. The 25 foot Duramax® 75° hand torch is well suited for a variety of applications such as gouging, fine feature cutting, extended reach cutting, and flush cutting. The ergonomic design of the 75° torch is perfect for normal cutting.
Important: Keep in mind when placing your purchase.
Get some idea on a few things to consider when purchasing a new STVCNC plasma table and what you need to know and have on-site.
View the 20-Step pipeline guide on how our multiple departments come together to produce your customized CNC Table order.
Table Specs: Standard Base Model Information & Sizing for Geeks
| Grade Marker | Plasma Table Specifications |
|---|---|
|
Cutting Envelope Dimensions |
5’(W) x 10’(L). XYZ Breakdown: X = 60”, Y = 120”, Z-Axis travel = 6” Maximum |
|
Linear System |
All Axis On Precision Ball Bearing Carriage Guide Rails |
|
Mechanical Drive System |
X-Axis & Y-Axis Rack & Pinion, Made In USA |
|
Mechanical Drive System |
Z-Axis – Full CNC’d Billet Precision Ball Lead-Screw |
|
System Interface |
Windows OS |
|
Motion Accuracy |
0.002” per 12" inches |
|
Step Resolution |
(+) or (-) 0.002” inches |
|
Maximum Cut Speed |
1000" inches per minute |
|
Torch Height Control |
Automatic |
|
Table Surface |
Waterpans and inserted, replaceable 2" inch steel slats |
|
Input Power |
110V for the plasma table and 220V for your plasma cutting system. |
|
System Ratio |
3:1 Gear Reduction Gear Ratio |
|
Precision Margin of Error |
Every 10ft. of Travel = Off by 0.002" to 0.005" inches |
|
What is Gear Reduction? |
Financing: Assistance via CIT Financing or available lenders
Get it right now
When a new equipment is crucial for your business, waiting for the funds to be available isn’t always an option. With financing, avoid a hefty upfront payment and get your equipment now.
Know what you're paying each month
Financing allows you to plan and budget with a predictable monthly payment.
Say No to the Hassle
Getting a loan can be a long, complicated process with some institutions. With financing through CIT, you can rest assured the process will be simple.
Keep your cash reserves available
Paying for your equipment over time through financing means there’s no lump sum required for your purchase. You can keep your cash reserves clear for other expenses or a rainy day.
Take Advantage of Competitive Rates
Top rates make financing a cost-effective solution.
Reap some serious Tax Benefits
Financed equipment can be deducted as an operating expense in the period in which they’re paid, reducing the overall cost. Payments are also treated as expenses on the income sheet, so there’s no need to worry about depreciation.

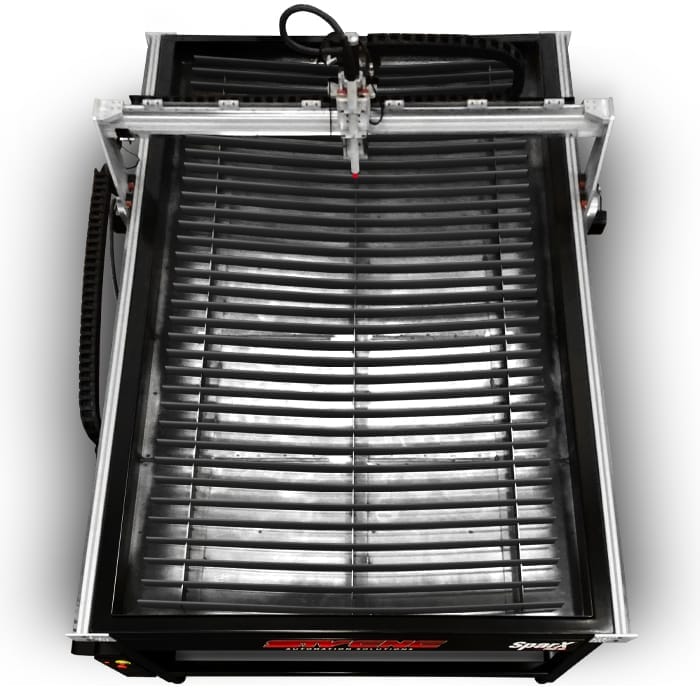

General Information about our In-house built CNC Plasma tables.
Get a high-end, fully-welded and assembled 5×10 CNC plasma table for your business at a price that makes sense.
- Industrial-grade level CNC plasma table for small to large sized industrial and fabrication markets.
- Professional plasma table that uses high-end machine features and capabilities.
- Included water table helps to reduce dust and metal warping.
Are you looking for a new CNC plasma table for your business? Then the STV®CNC SparX™ Welded PRO 10 Plasma Table is just what you need. This industrial level CNC plasma table is perfect for companies just getting started with CNC machining or for those looking to increase production capabilities. With several advanced attachments like a water table that helps prevent dust and metal warping from the high levels of heat and the included automatic torch height control, you’ll be able to create amazing metal designs. With high-end components, this plasma table delivers some of the best plasma cutting speeds and consistency around. Get your 5 x 10 automated plasma table today!
- Uses Windows OS interface
- Several advanced attachments included
- Dry or water pan options available
- Automatic torch height control included
We have applied the best technologies of high-end, industrial level CNC plasma tables at a competitive price. The STV®CNC SparX™ Pro Plasma Table Series incorporates high-end machine features and capabilities, in a simple but effective package. Using our high accuracy stepper motors for speed, control and smooth operation and combining it with ground linear bearings and guide rails results in consistency and speed that is unrivaled in the industry. Additionally, our tables are built tough and designed to easily handle inch thick steel plates and they can handle much more. Proudly made in the USA.
INCLUDED FEATURES
- FULLY WELDED FRAME HOLDS UP TO 2″ INCH PLATE
- TABLE COMES FULLY ASSEMBLED
- FULL SOFTWARE PACKAGE AND LICENSES INCLUDED
- (THC) AUTOMATIC TORCH HEIGHT CONTROL
- FULLY ASSEMBLED GANTRY
- AUTOMATION WIRING (HANDCRAFTED & LABELED)
- AUTOMATIC HOMING KIT
- LEVELING FEET
- TRIPLE STEPPER MOTOR GEAR REDUCTION SYSTEM
- WATER TABLE & SUPPORT BEAMS INCLUDED
- WATER PAN SLATS
- ATTACHED CONTROLLER (E-STOP INCLUDED)
- ADVANCED CABLE MANAGEMENT
- AUTOMATE REPEATING TASKS
- FULLY ASSEMBLED LINEAR GUIDE RAILS & DUAL CARRIAGES
- Z-AXIS BILLET PRECISION BALL LEAD SCREW
- USB CONNECTIVITY
- 1 YEAR WARRANTY
- LIFETIME SUPPORT INCLUDED!
Purchase your Plasma Table for as low as $395 a month! |
