STV®CNC SparX™ 4400 Plasma Table

$4,999.00

The modular STVCNC Sparx4400 is a robust Plasma Cutting Table that offers faster, cleaner cuts with a precise motion system and a sturdy, heavy-duty build able to support up to a 1.5” inch steel plate. Our product line consists of prime-selected components and backed by a long list of great features, exceptional lifetime support all within an affordable price.

INCLUDED FEATURES

  • MODULAR FRAME HOLDS UP TO 1.5″ INCH PLATE
  • FULL SOFTWARE PACKAGE AND LICENSES INCLUDED
  • USER-FRIENDLY ASSEMBLY INSTRUCTION MANUAL
  • (THC) AUTOMATIC TORCH HEIGHT CONTROL
  • FULLY ASSEMBLED GANTRY
  • AUTOMATION WIRING (HANDCRAFTED & LABELED)
  • WATER TABLE​ & SUPPORT BEAMS INCLUDED
  • WATER PAN SLATS
  • CONTROLLER (E-STOP INCLUDED)
  • ADVANCED CABLE MANAGEMENT
  • AUTOMATE REPEATING TASKS​
  • FULLY ASSEMBLED LINEAR GUIDE RAILS & DUAL CARRIAGES
  • Z-AXIS BILLET PRECISION BALL LEAD SCREW
  • STEPPER MOTOR SYSTEM
  • USB CONNECTIVITY​
  • 1 YEAR WARRANTY
  • LIFETIME SUPPORT INCLUDED!

Want to Compare Tables? View our Comparison Chart here.

Customize Your Table

Add additional functionality to your plasma table

Anti-Rust Solution (prevents dust, debris & rust in your water pans)

New Windows 10 Laptop with Pre-installed Controller program.

Proximity Sensors make "Homing the Table" Fast & Easy.

Includes Inner Support Brackets, Fasteners and Swivel Screw base.

Triple Motor Belt-driven gear reduction system for increased precision & smooth travel.

Magnetic torch holder that breaks off to avoid damage.

IMPORTANT:Select this "ONLY" if you are an existing Hypertherm® Plasma System Owner & wish to purchase a CPC cable.

Designed for Heavy Industrial Operations. Reinforces Structural Strength & Reduces Vibration.

IMPORTANT:Select this "ONLY" if you are an existing Hypertherm® Plasma System Owner & wish to purchase a Mechanized Torch.

Plasma System

Hypertherm® systems currently on backorder. Expected FEBRUARY 2021. Your purchase of a Hypertherm® Plasma System with STV®CNC includes the Plasma System, CPC Interface Cable & a 25ft. Mechanized Torch.

IMPORTANT: If you plan to use your own Plasma cutter, you must have a machine torch & a CPC Machine Interface Port for your Plasma System.

Product price
Additional options total:
Order total:



The toughest plasma tables on the market.

  • Plasma tables with high-end machine features in a small frame.
  • Automated plasma cutters that can handle metals of various widths.
  • CNC plasma table that’s perfect for businesses of all sizes.

When you need the best plasma cutting table for your company, then look no further than the STV®CNC SparX™ 4400 Plasma Table. This automated plasma table can handle all sizes of metal, from a half-inch thick and beyond. All of our CNC plasma tables feature high-end machinery that helps reduce the time spent creating while increasing consistency. This industrial level plasma cutter is perfect for companies both big and small, especially those looking for their first plasma table. If you need a rugged and reliable automated plasma cutter, then the STV CNC SparX 4400 Plasma Table is perfect for you. Get your CNC plasma table online today.

  • Uses Windows OS interface
  • Several advanced attachments included
  • Dry or water pan options available
  • Selectable input power

We have applied the technologies of high end, industrial level CNC plasma tables to the entry level market. The STV®CNC SparX™ Plasma Table Series incorporates high end machine features and capabilities, in a smaller package. Using our high accuracy stepper motors for speed, control and smooth operation and combining it with ground linear bearings and guide rails results in consistency and speed that is unrivaled in the industry. Additionally, our tables are built tough and designed to easily handle half-inch steel plates (but they can handle more). Made in the USA.

INCLUDED FEATURES

  • MODULAR FRAME HOLDS UP TO 1.5″ INCH PLATE
  • FULL SOFTWARE PACKAGE AND LICENSES INCLUDED
  • USER-FRIENDLY ASSEMBLY INSTRUCTION MANUAL
  • (THC) AUTOMATIC TORCH HEIGHT CONTROL
  • FULLY ASSEMBLED GANTRY
  • AUTOMATION WIRING (HANDCRAFTED & LABELED)
  • WATER TABLE​ & SUPPORT BEAMS INCLUDED
  • WATER PAN SLATS
  • CONTROLLER (E-STOP INCLUDED)
  • ADVANCED CABLE MANAGEMENT
  • AUTOMATE REPEATING TASKS​
  • FULLY ASSEMBLED LINEAR GUIDE RAILS & DUAL CARRIAGES
  • Z-AXIS BILLET PRECISION BALL LEAD SCREW

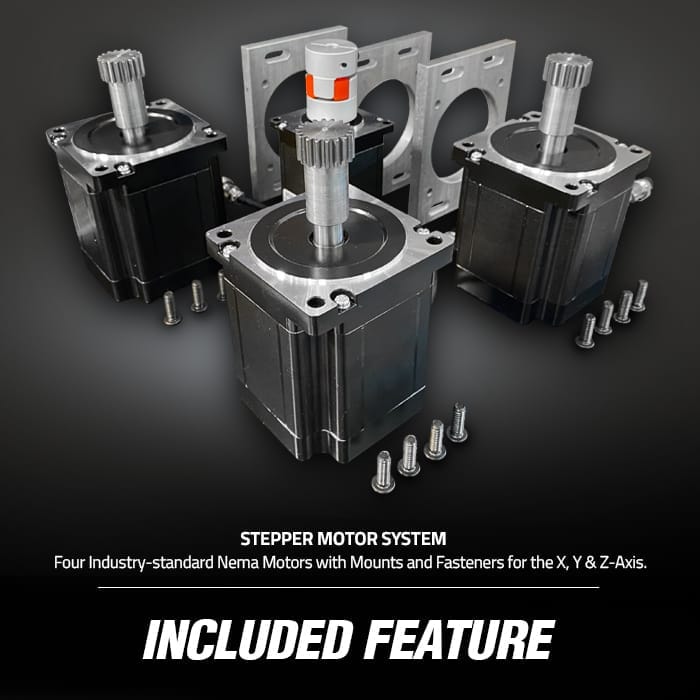

  • STEPPER MOTOR SYSTEM
  • USB CONNECTIVITY​
  • 1 YEAR WARRANTY
  • LIFETIME SUPPORT INCLUDED!

Purchase your Plasma Table for as low as $195 a month!

TABLE SPECIFICATIONS

CUTTING ENVELOPE DIMENSIONS:  4’ x 4’, X = 48” X Y=48”, Z-AXIS TRAVEL = 6” MAXIMUM
LINEAR SYSTEM: ALL AXIS ON PRECISION BALL BEARING CARRIAGE GUIDE RAILS
MECHANICAL DRIVE SYSTEM: X-AXIS & Y-AXIS RACK AND PINION, MADE IN USA
MECHANICAL DRIVE SYSTEM: Z-AXIS – FULL CNC’D BILLET PRECISION BALL LEAD-SCREW
SYSTEM INTERFACE: WINDOWS OS
MOTION ACCURACY: .002” PER 12 INCHES
STEP RESOLUTION: (+) or (-) 0.005”
MAXIMUM CUT SPEED: 800 INCHES A MINUTE
TORCH HEIGHT CONTROL: AUTOMATIC
TABLE SURFACE: REPLACEABLE STEEL SLATS . DRY OR WATER PAN OPTION AVAILABLE.
INPUT POWER: 110/220V  VAC ( SELECTABLE )

Z-axis head on one of our CNC plasma tablesAUTOMATIC TORCH HEIGHT CONTROL (THC)​

A high performance torch height control (THC) is essential to getting the most out of your CNC plasma table. Our THC utilizes advanced processor technology, the THC can be set to respond to cutting conditions that rival products costing thousands of dollars more has the control, accuracy, adjustable features as our THC.​



Water pan slats on one of our CNC plasma cutter tablesWATER TABLE​

A water table drastically reduces dust and helps prevent the metal from warping due to high heat.  Most plasma table companies expect you to pay extra for such a feature but STV®CNC includes one as a part of our standard package on every table.



Cable track and automation wiring on one of our automated plasma tablesADVANCED CABLE MANAGEMENT

Our cable management system, which neatly contains and secures all of the cables and links, give the plasma table a clean aesthetic look while eliminating the need for overhead arms or loose wiring. This in turn gives you a larger, unobstructed loading area and increases your tables functionality.



USB CONNECTIVITY

Gone are the days of needing to track down and repair old computers that had a vital parallel port. Our plasma tables all come with USB connectivity and can easily work with any Windows operating system.



UPGRADES AND ADD-ONS



Upgrades and Addons - Plasma QuenchADD-ON: PLASMA QUENCH (ANTI-RUST SOLUTION)​

Recommended if you would like to decrease production dust/debris, preserve your water pans & avoid any oxidation. The Blue Anti-Rust Solution will be sent to you in a 5 Gallon Bucket with an Instruction Label to follow upon use. For a STV®CNC Plasma Quench Guide, click here: Plasma Quench User’s Guide

Windows 10 LaptopADD-ON: WINDOWS 10 LAPTOP WITH CONTROLLER SOFTWARE​

New Windows 10 Laptop with Pre-installed Controller program. This Brand New Windows 10 Laptop is dedicated for “function” and will arrive with Installed Software, Setup and USB Connectivity. Licenses will be included in this add-on feature. Laptop Make and Model may differ upon availability.

Skid Resistant Leveling FeetADD-ON: LEVELING FEET (SKID RESISTANT)​

Includes Inner Support Brackets, Fasteners and Swivel Screw base. For any Floor plan leveling issues, our skid-resistant leveling feet will come in handy on keeping a leveled table on your production grounds. Attaches to your STV®CNC Frame legs; raise or drop within a 2″ inch range to your desired height.

Leg Brace SupportsADD-ON: LEG BRACE SUPPORTS

Designed for Heavy Industrial Operations. Reinforces Structural Strength and Reduces Vibration. Recommended if you should decide to greatly increase the weight of your production sheets. The Supports are designed, manufactured, professionally painted in-house & come with the necessary fasters to lock them in.

STVCNC Homing KitADD-ON: AUTOMATIC HOMING KIT

On a Daily use, Proximity Sensors make “Homing the Table” fast, easy and worry-free. To increase time efficiency we’ve produced an in-house STV®CNC Automatic Homing Kit. Two Proximity Sensors Included with Cabling, brackets, fasteners, control box connectors and a manual to automatically set your table to X=0, Y=0.

STVCNC Magnetic BreakawayADD-ON: MAGNETIC BREAKAWAY

The STV®CNC Magnetic Breakaway Kit prevents any unforeseen discarded production pieces from interrupting the path of your moving Torch, possible damage to your Z-Axis, Gantry calibration & the ability to continue your cut afterwards. The Kit is designed, manufactured, assembled & tested in-house.

CPC Interface CableADD-ON: CPC INTERFACE CABLE​

Select “ONLY” if you are an existing Hypertherm® Plasma System Owner & require a CPC cable. If you purchase a Plasma Table with us & decide to use your personal plasma system or decide to purchase one elsewhere, you will need to purchase this item to connect your plasma system to the STV®CNC Control Box.

STVCNC Gear ReductionADD-ON: GEAR REDUCTION

The STV®CNC Gear Reduction System are 3 (X, Y & Z) separate mounted stepper motors with belt-driven gears to increase precision & gliding fluidity. Handcrafted Cable Wiring fastens into your Plasma Table. The Kit is designed, manufactured, assembled & tested in-house. Click here for Gear Reduction Chart.





STVCNC Plasma Table Power Ratings 4x4



WHAT HAPPENS AFTER PURCHASE?

20-Step Pipeline Guide of  “What to Expect” after placing your order.

Our “What to Expect” PDF Guide covers all the following steps:

  • Customized Orders
  • Your Site Preparation
  • FAQ
  • Banking & Financing
  • Shipping Verification
  • Confirmation
  • Processing & Production Time
  • In-House Production Breakdown
  • Shipping Time, Transit & Delivery
  • STVCNC Training and Community

The “What to Expect” PDF Guide will improve

your STVCNC Purchase Experience. Click here to view



Weight 11200 oz
Dimensions 60 × 71 × 58 in
