Get the best automated 5 x 5 CNC plasma table on the market.
- Plasma cutter with high accuracy stepper motors.
- Automated plasma table with the best speed and consistency.
- Industrial level plasma table for entry level businesses.
When you need a fast and reliable automated plasma table, then the STV®CNC SparX™ 505 Plasma Table is exactly what you’ve been looking for. Using high accuracy stepper motors, this automated plasma cutting table delivers speed, control, and consistency better than any plasma table on the market. This industrial level plasma table is perfect for businesses of all sizes and capabilities. With advanced attachments, a one year warranty, and lifetime support all included, you’ll get the best automated plasma cutter when you get the STV CNC SparX 505. Get this automated plasma table online today!
- Uses Windows OS interface
- Several advanced attachments included
- Dry or water pan options available
- Selectable input power
We have applied the technologies of high end, industrial level CNC plasma tables to the entry level market. The STV®CNC SparX™ Plasma Table Series incorporates high end machine features and capabilities, in a smaller package. Using our high accuracy stepper motors for speed, control and smooth operation and combining it with ground linear bearings and guide rails results in consistency and speed that is unrivaled in the industry. Additionally, our tables are built tough and designed to easily handle half-inch steel plates (but they can handle more). Made in the USA.

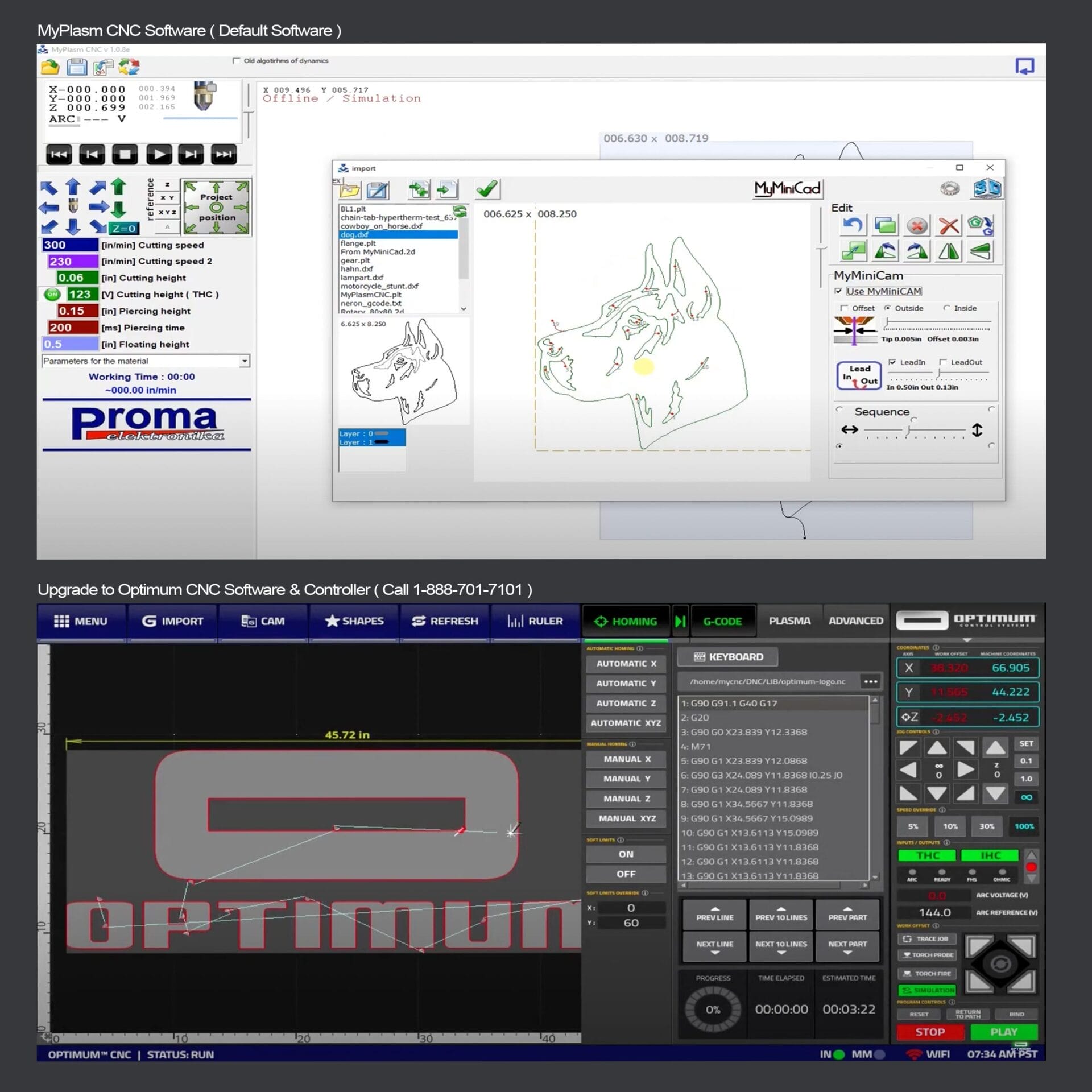

- FULL SOFTWARE PACKAGE AND LICENSES INCLUDED
- AUTOMATIC TORCH HEIGHT CONTROL (THC)
- AUTOMATION WIRING
- WATER TABLE INCLUDED
- ADVANCED CABLE MANAGEMENT
- AUTOMATE REPEATING TASKS

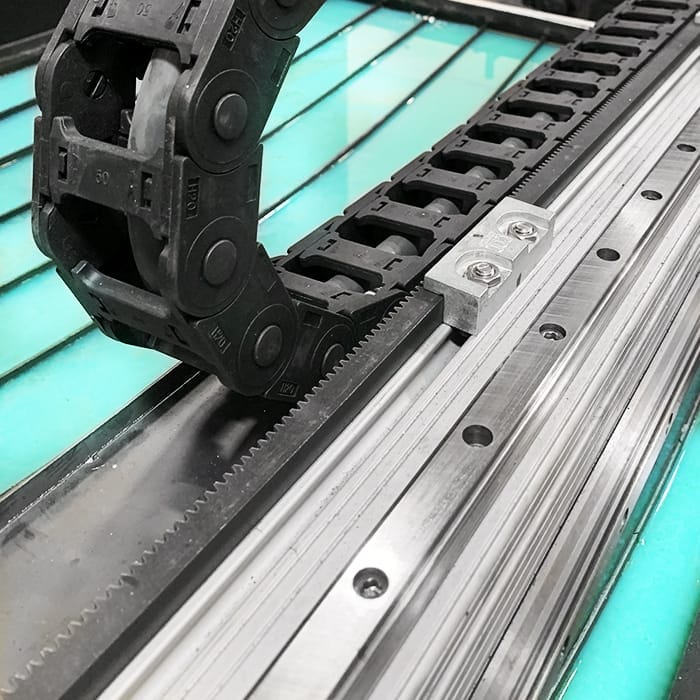

- HIGH QUALITY LINEAR GUIDE RAILS

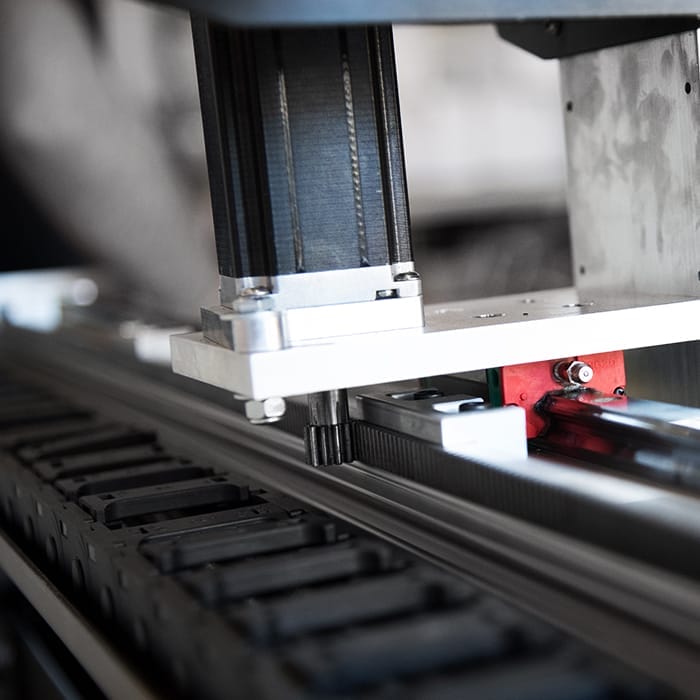

- STEPPER MOTOR SYSTEM
- USB CONNECTIVITY
- 1 YEAR WARRANTY & LIFETIME SUPPORT INCLUDED!
Purchase your Plasma Table for as low as $250 a month!

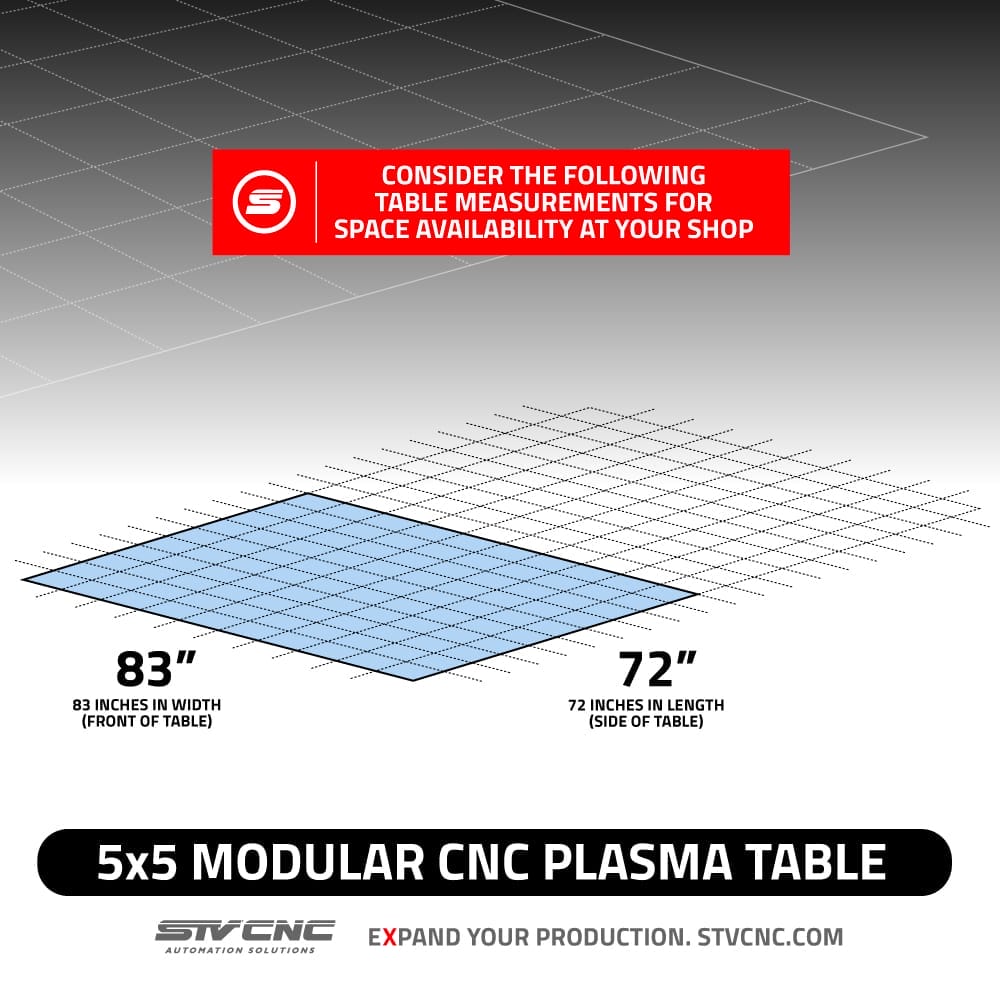

CUTTING ENVELOPE DIMENSIONS: 5’ x 5’, X = 60” X Y=60”, Z-AXIS TRAVEL = 6” MAXIMUM

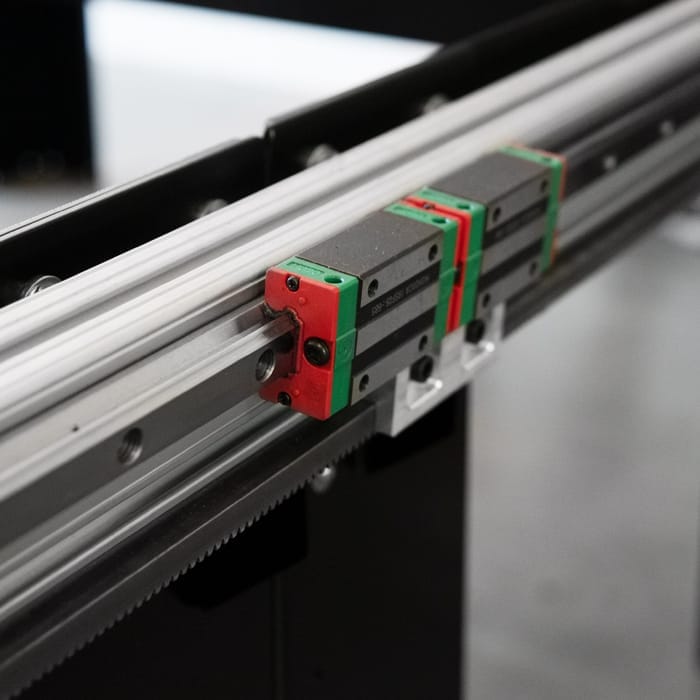

LINEAR SYSTEM: ALL AXIS ON PRECISION BALL BEARING CARRIAGE GUIDE RAILS

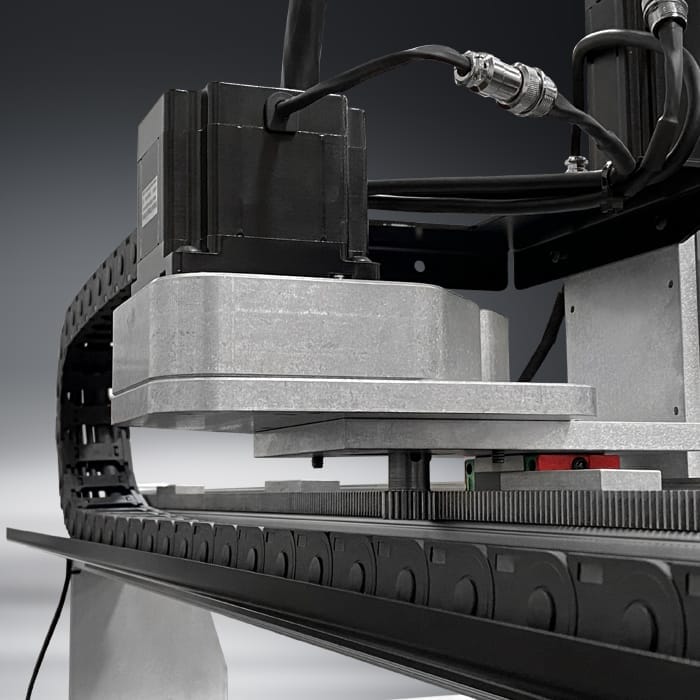

MECHANICAL DRIVE SYSTEM: X-AXIS & Y-AXIS RACK AND PINION, MADE IN USA

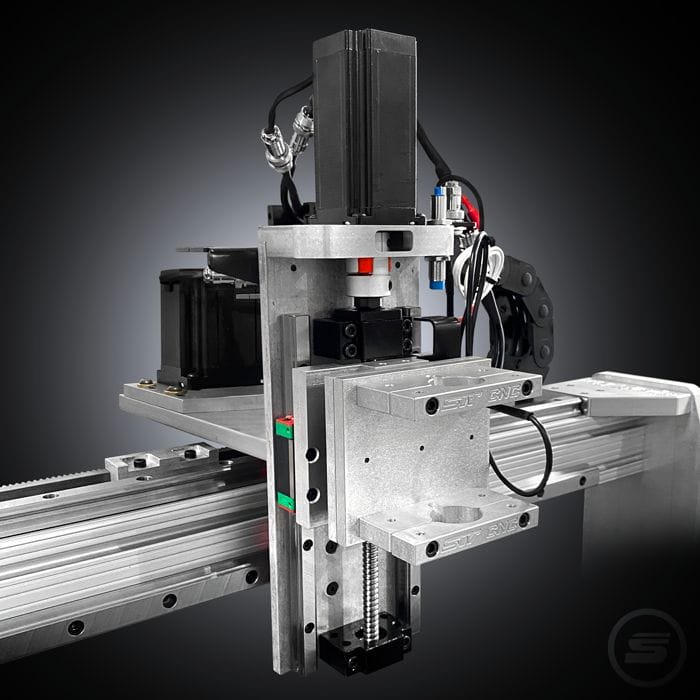

MECHANICAL DRIVE SYSTEM: Z-AXIS – FULL CNC’D BILLET PRECISION BALL LEAD-SCREW
SYSTEM INTERFACE: WINDOWS OS
MOTION ACCURACY: .002” PER 12 INCHES
STEP RESOLUTION: (+) or (-) 0.005”
MAXIMUM CUT SPEED: 800 INCHES A MINUTE
TORCH HEIGHT CONTROL: AUTOMATIC

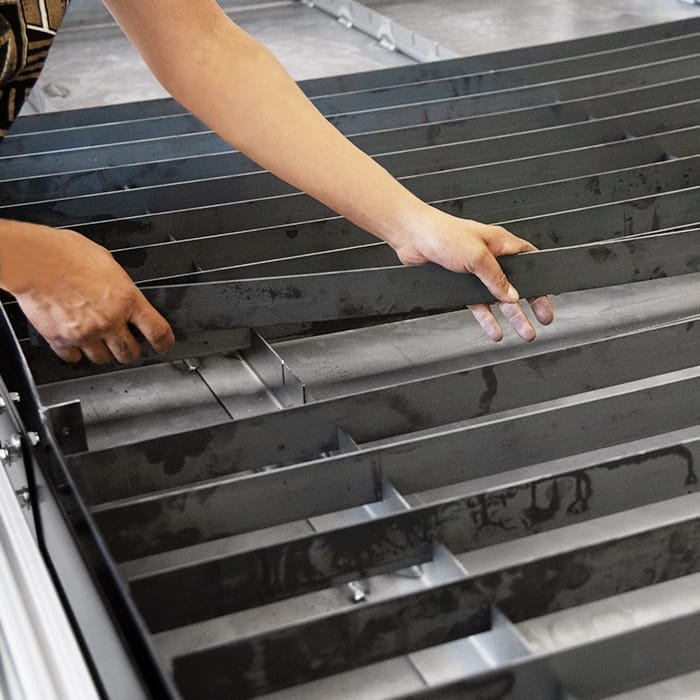

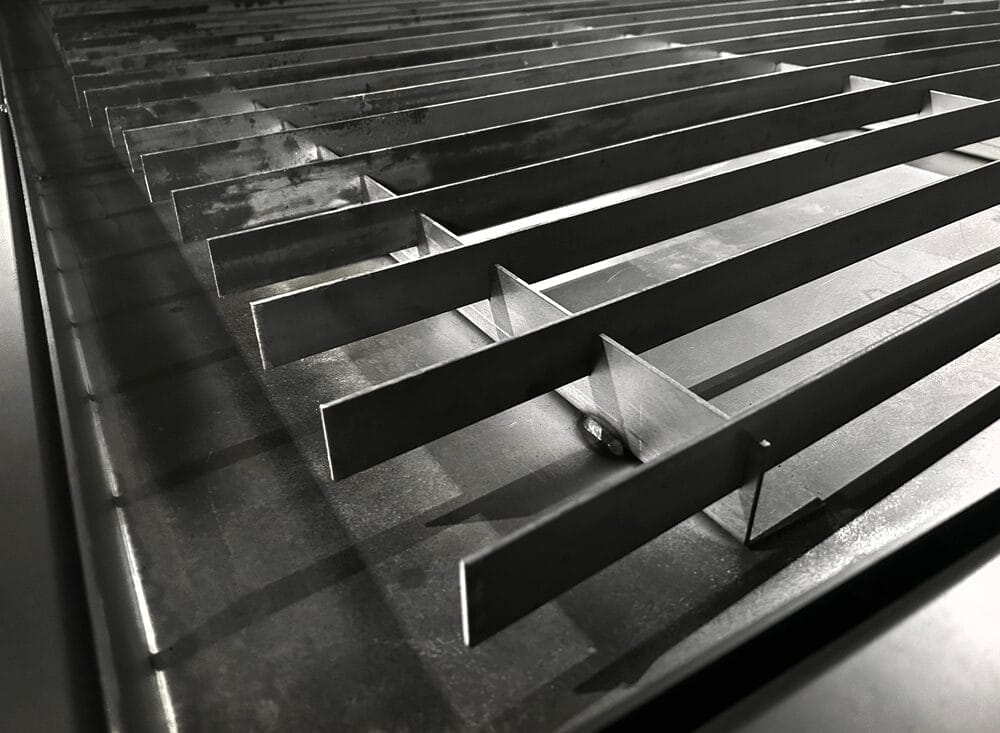

TABLE SURFACE: REPLACEABLE STEEL SLATS . DRY OR WATER PAN OPTION AVAILABLE.
INPUT POWER: 110/220V VAC ( SELECTABLE )
AUTOMATIC TORCH HEIGHT CONTROL (THC)
A high performance torch height control (THC) is essential to getting the most out of your CNC plasma table. Our THC utilizes advanced processor technology, the THC can be set to respond to cutting conditions that rival products costing thousands of dollars more has the control, accuracy, adjustable features as our THC.
A water table drastically reduces dust and helps prevent the metal from warping due to high heat. Most plasma table companies expect you to pay extra for such a feature but STV®CNC includes one as a part of our standard package on every table.

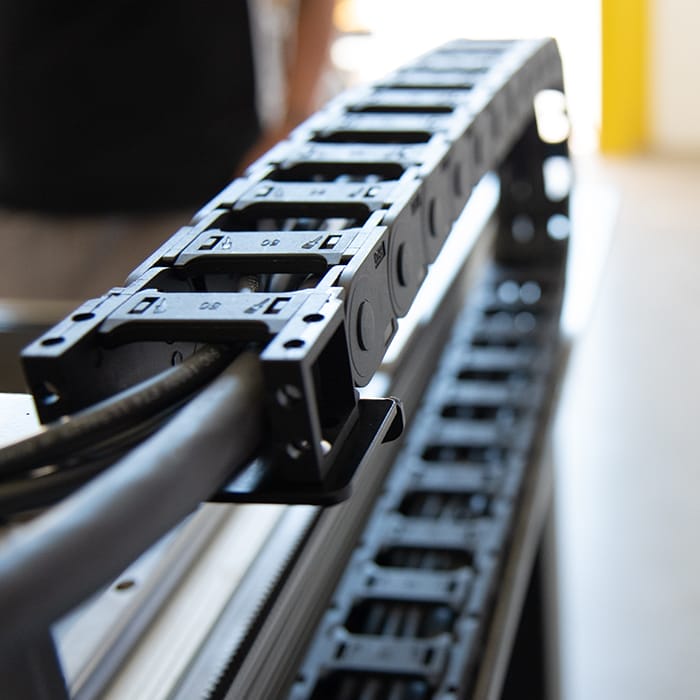

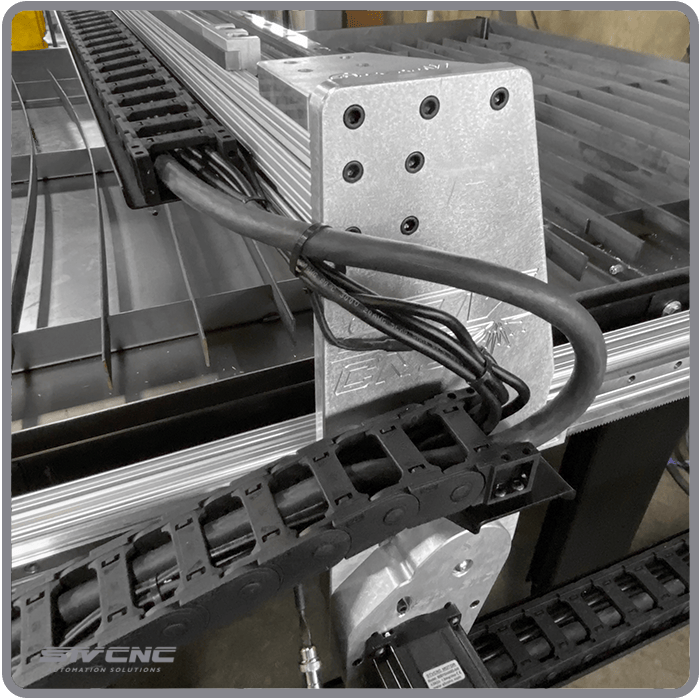

ADVANCED CABLE MANAGEMENT
Our cable management system, which neatly contains and secures all of the cables and links, give the plasma table a clean aesthetic look while eliminating the need for overhead arms or loose wiring. This in turn gives you a larger, unobstructed loading area and increases your tables functionality.

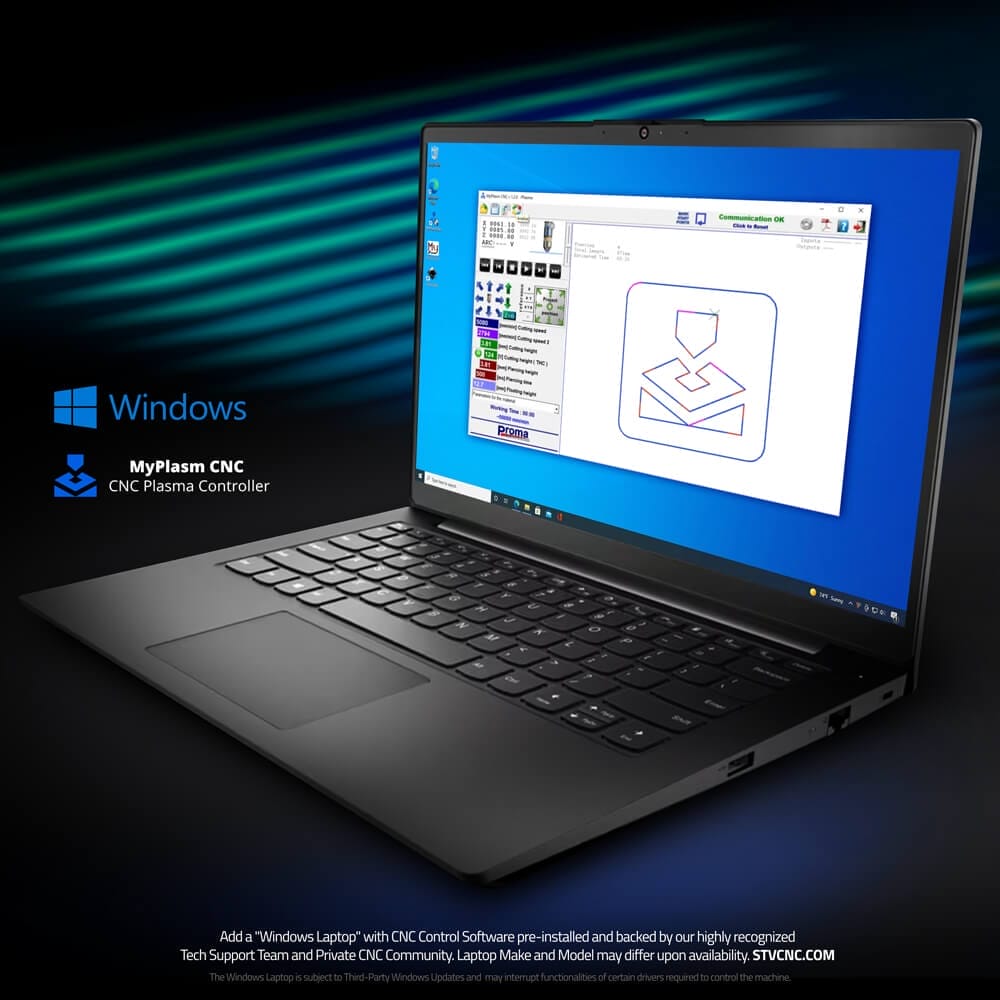

Gone are the days of needing to track down and repair old computers that had a vital parallel port. Our plasma tables all come with USB connectivity and can easily work with any Windows operating system.
